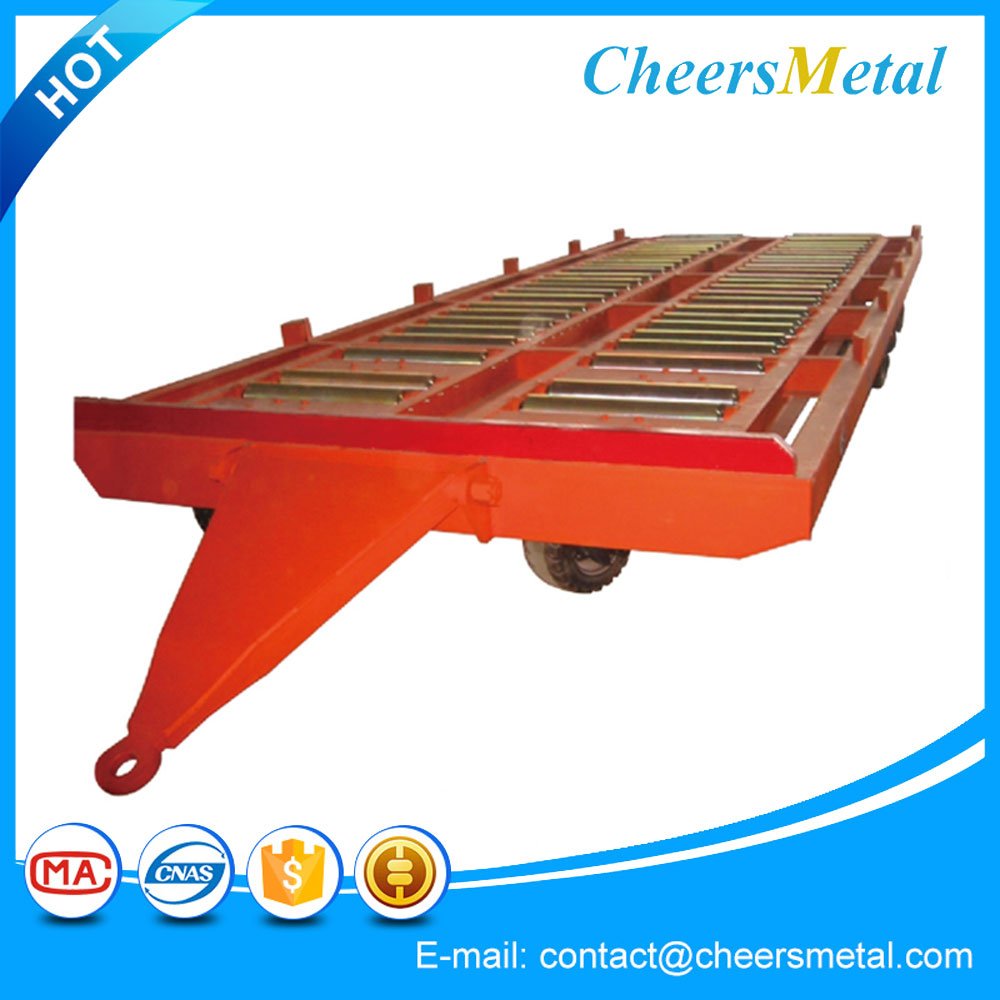

An aviation pallet dolly trailer, also known as an aircraft cargo dolly trailer or aircraft pallet trailer, is a specialized type of ground support equipment used at airports to transport and handle aviation pallets, containers, and other cargo units. These trailers are designed to be towed by tug vehicles and provide efficient means of transporting cargo between storage areas, aircraft, and cargo handling facilities.
Key features of an aviation pallet dolly trailer include:
Cargo Transport: The trailer is designed to carry aviation pallets, containers, ULDs (Unit Load Devices), and other cargo units commonly used in aviation.
Towing Capability: These trailers are designed to be towed by tug vehicles, allowing efficient transportation of cargo across the airport apron or tarmac.
Wheels and Mobility: Equipped with sturdy wheels, the trailer enables smooth movement and navigation within airport facilities.
Main function
For transportation of P1P/P6P/PLA/PRA/P7E pallet with Max payload of 27 ton.
SPECIFICATION OF PALLET DOLLY |
| Load | Rear | Max Payload(kg) | /27000 |
| Overall dim(mm) | 8100(L)*2700(W)*1555(H) | cWheel base(mm) | 4225 |
| Towbar height dropped position(mm) | 616 | Platform Height(mm) | 528 |
| Rear wheels(mm) | 380*175 | Length Between Tyres(mm) | 1300 |
| Roller dia(mm) | 108 | Front Wheels(mm) | 360*175 |
Feature
1.Heavy duty channel profile steel & tube welded frame work galvanized roller bed floor for easy operation;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.Tyres:solidn cushion for longer life;
4.Tow bar for multi-dolly linkage;
5.Powered brush or blast & user's optional finish paints;
6.Unit ID number pad at request.
