Product Description
This single arm crane is a versatile and efficient lifting solution engineered for material handling in workshops, warehouses, and industrial sites. With a robust single - arm structure, it enables safe and convenient lifting, transporting, and positioning of heavy loads, streamlining your daily operations.
Sturdy Construction: Fabricated from high - quality steel, the crane boasts excellent load - bearing capacity and durability, ensuring long - term reliable use even in harsh working environments.
Flexible Maneuverability: Equipped with smooth - rolling casters, it can be easily moved across different floor surfaces. The compact design allows access to narrow spaces for flexible material handling.
Adjustable Lifting Arm: The single arm features an adjustable length/angle (specify adjustment range if available), catering to diverse lifting height and radius requirements for various work scenarios.
Specification
| model | CM-CSAC750 |
| Lifting method | Manual hydraulic |
| Boom length(mm) | 925 | 1200 | 1480 | 1780 | 2080 |
| Maximum load for each boom length(kg) | 750 | 500 | 380 | 260 | 200 |
| Maximum height of hook from the ground(mm) | 2000 | 2200 | 2400 | 2600 | 2750 |
| Height from the ground when the boom is horizontal(mm) | 1524 | 1524 | 1524 | 1524 | 1524 |
| Distance from hook to front end when the boom is horizontal(mm) | 377 | 662 | 952 | 1252 | 1532 |
|
|
| Charger(V/A) | -- |
| Body size: length, width and height(mm) | 1750×910x1730 |
| Castors (PU)(mm) | φ180 |
| Net weight of the vehicle(kg) | 500 |

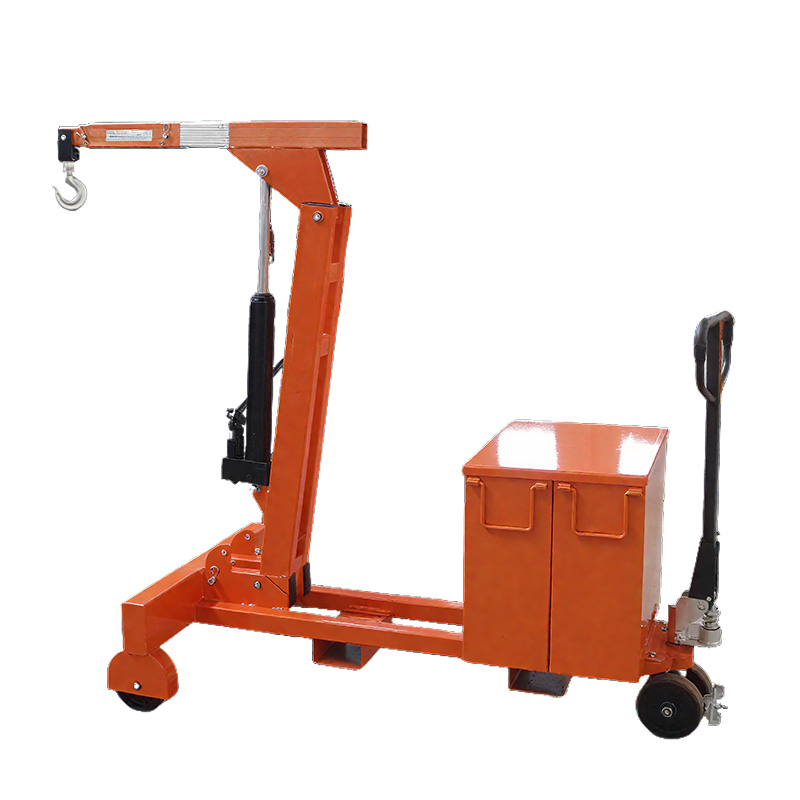

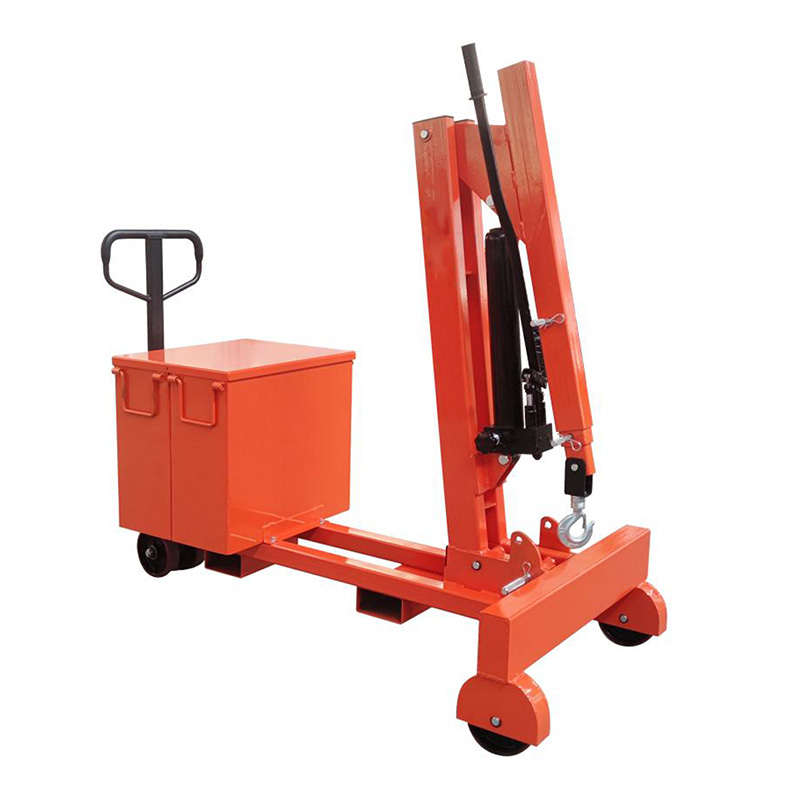

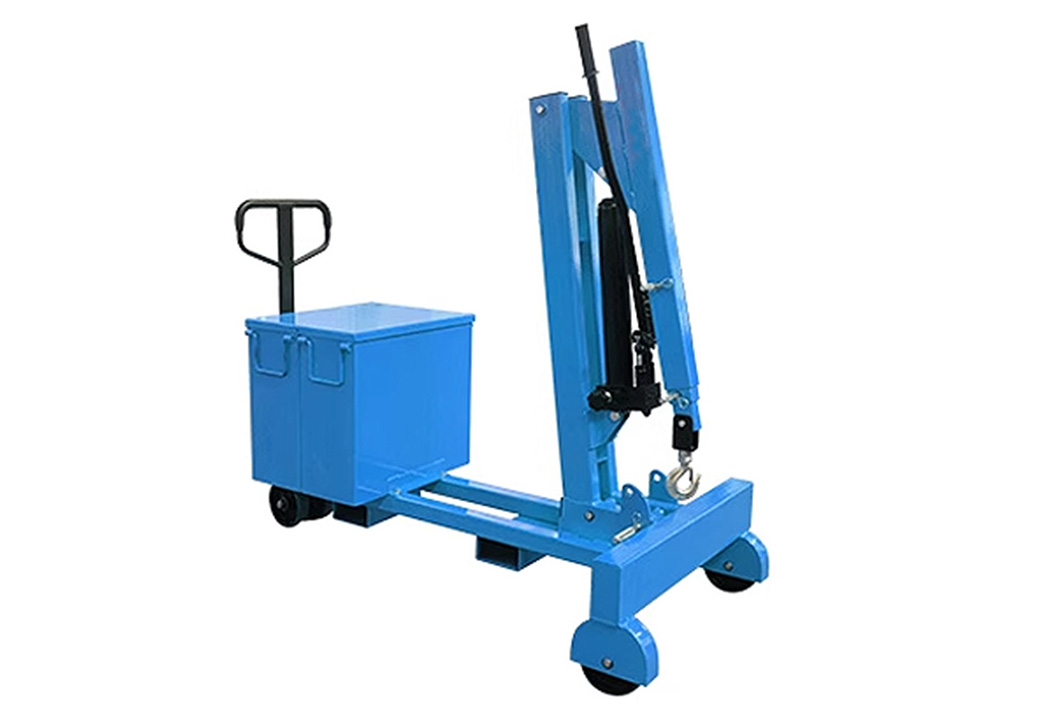

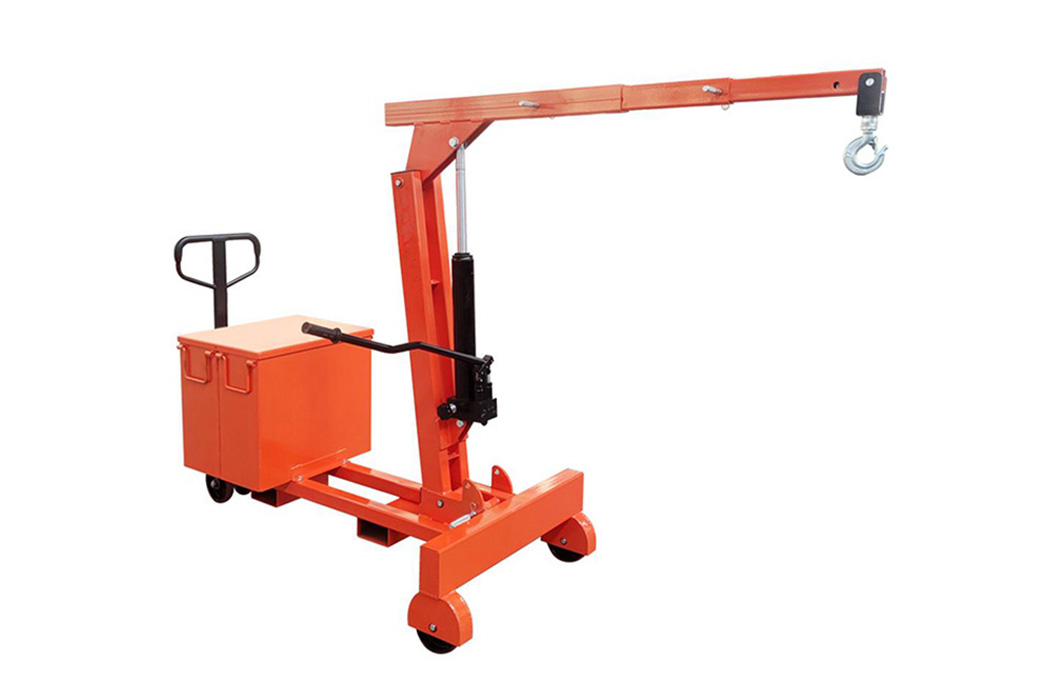

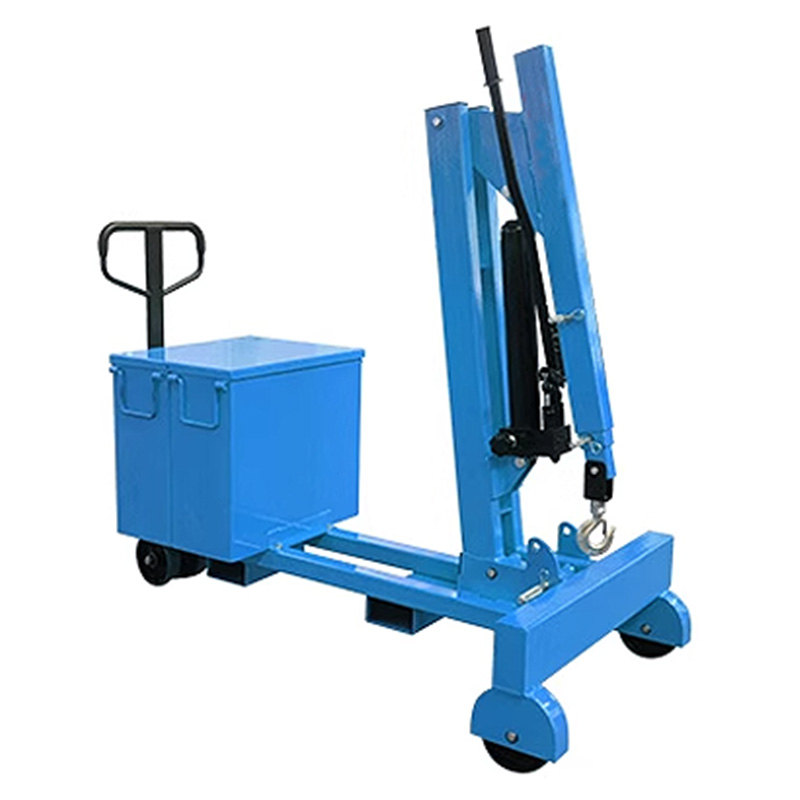

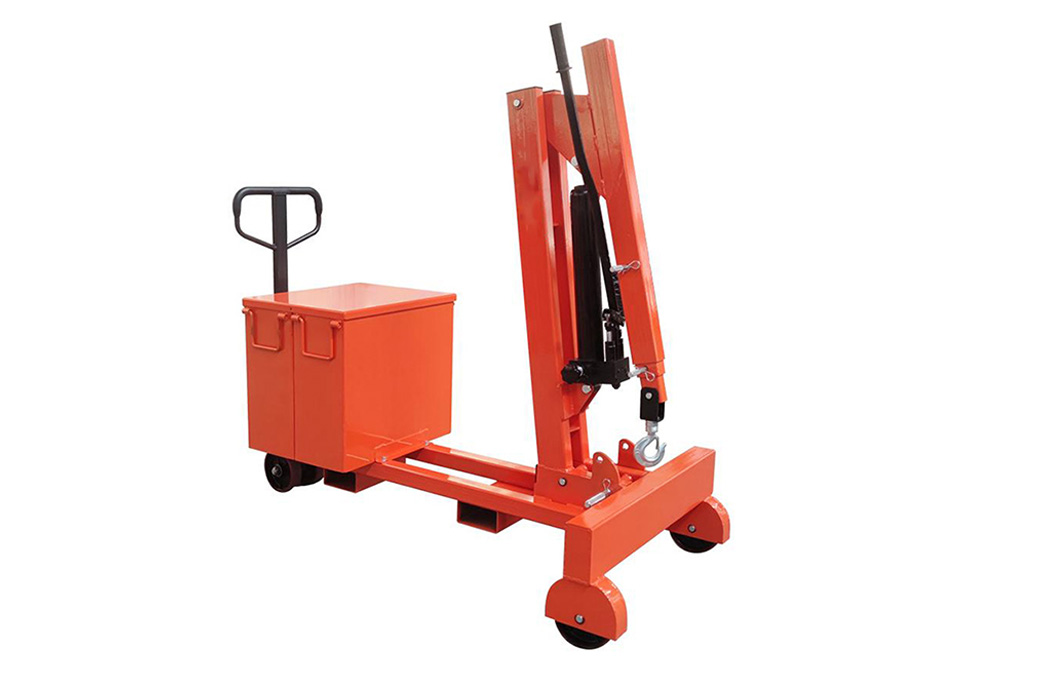

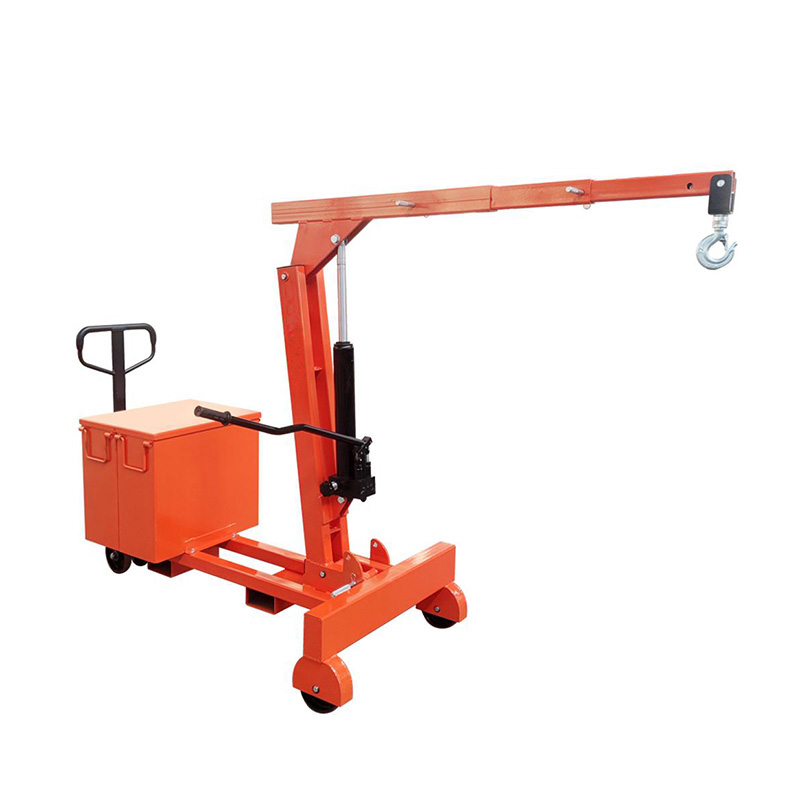

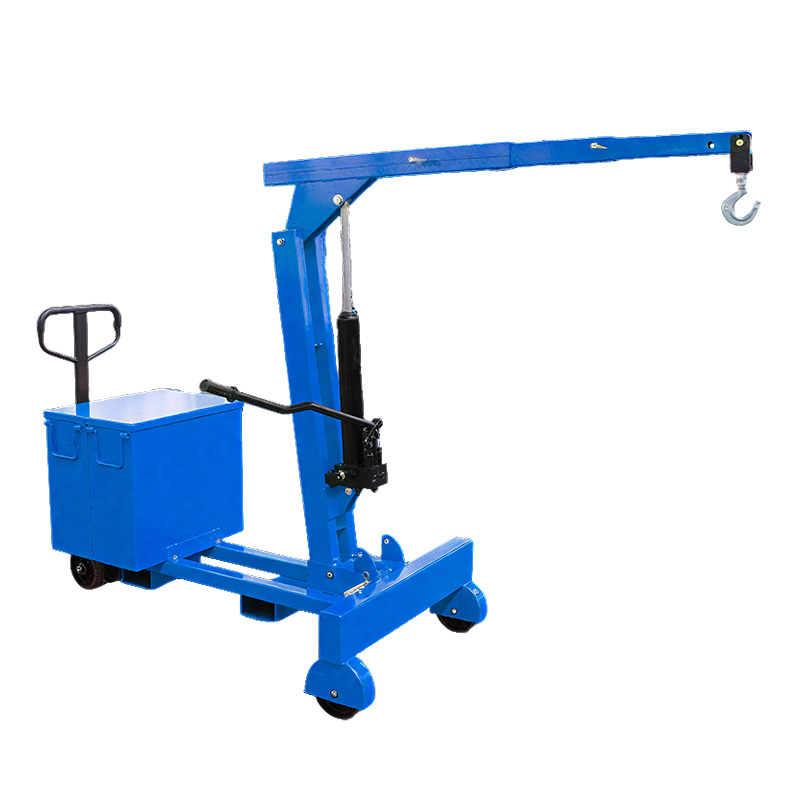

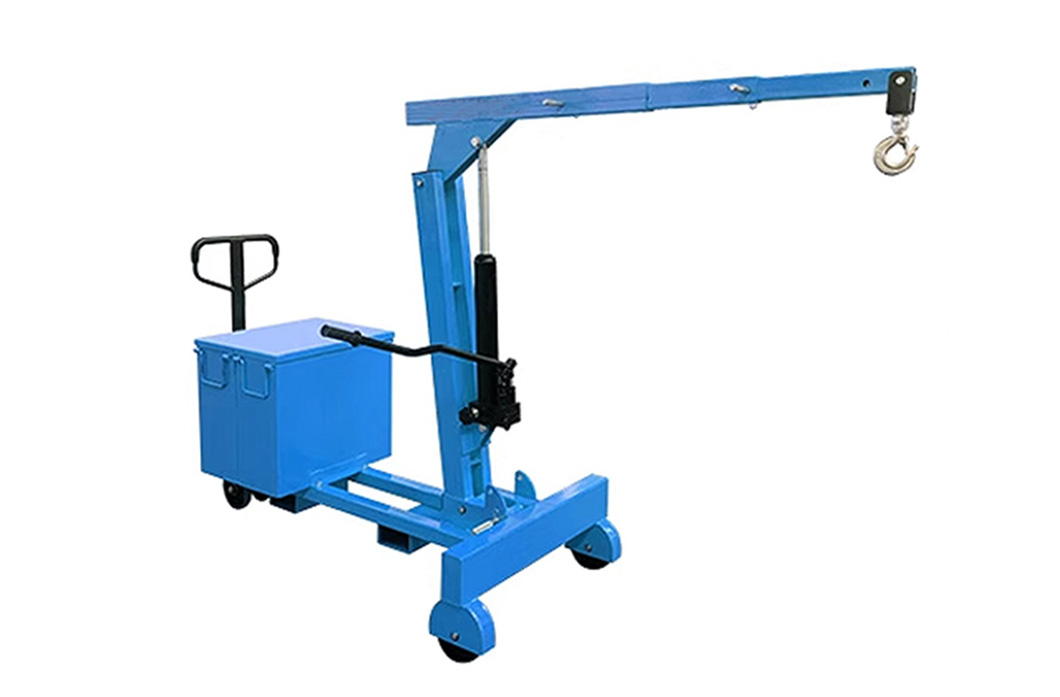

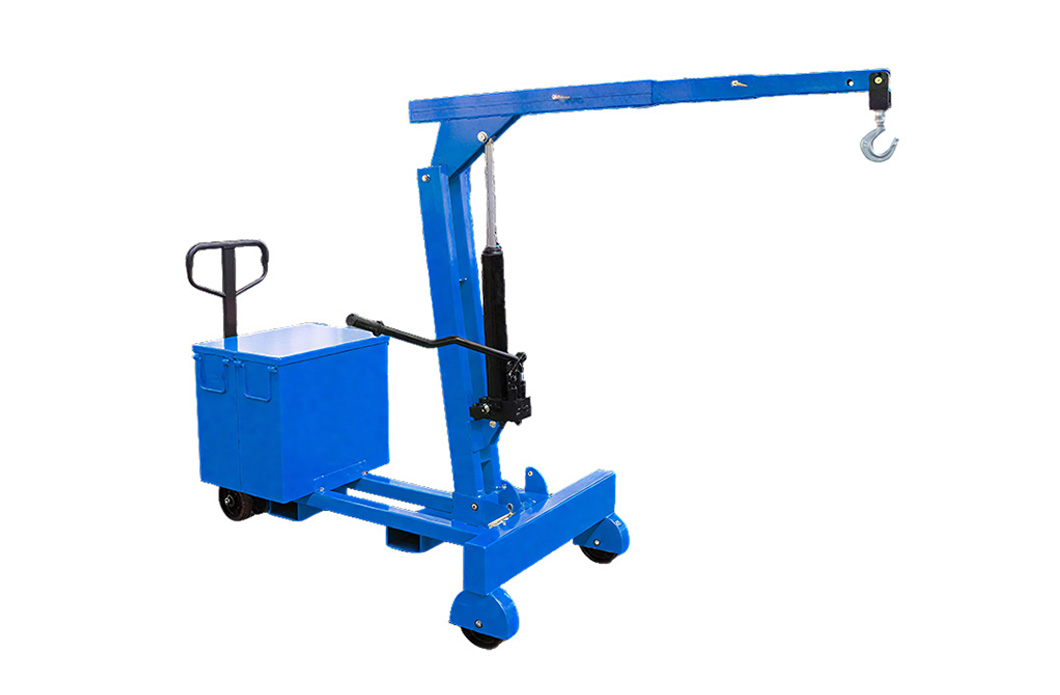

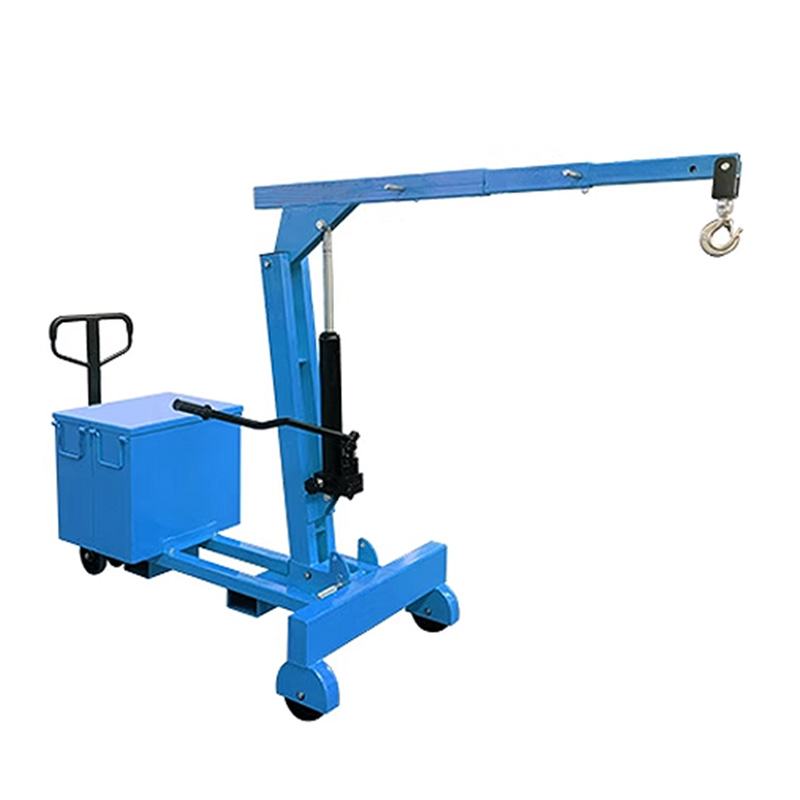

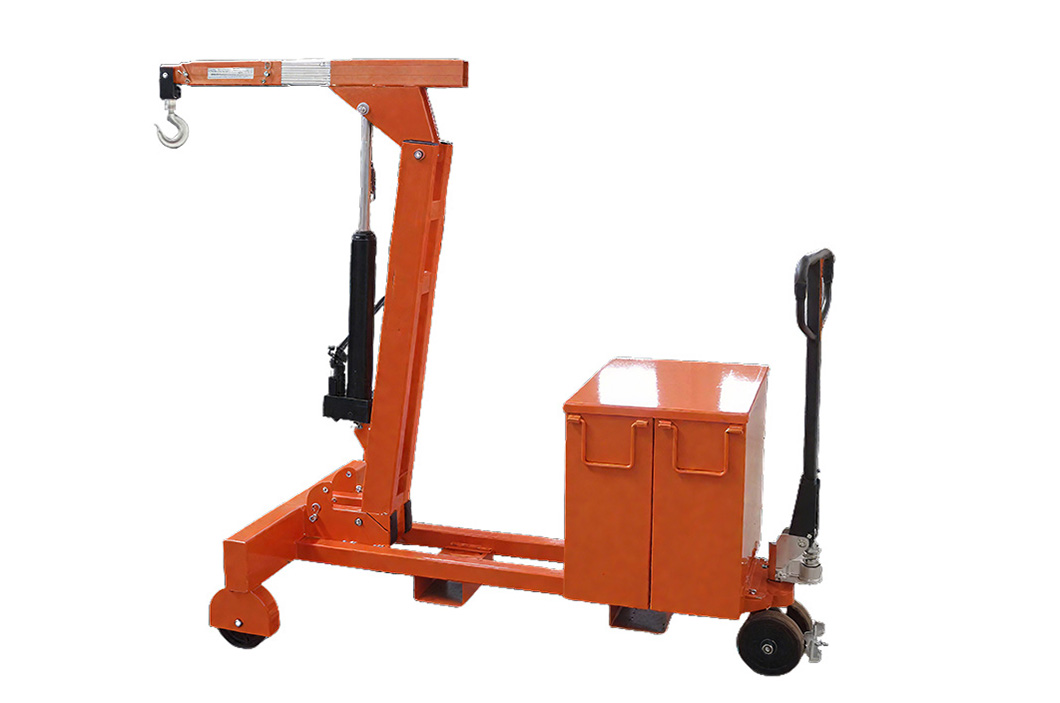

Product Picture
