Introduction
An airport baggage tractor is a specialized vehicle used at airports to transport and handle baggage carts, luggage containers, and other equipment used for handling passenger and cargo baggage. These tractors play a crucial role in ensuring the efficient movement of baggage between terminals, aircraft, and cargo areas.
Key features of an airport baggage tractor include:
Power Source: Airport towing tractors can be powered by various means, including internal combustion engines (typically diesel or gasoline), electric motors, or hybrid systems.
Operator Controls: Tractor operators have access to controls that allow for precise maneuvering, steering, and speed adjustments.
Safety Features: Towing tractors often have safety features such as anti-skid systems, brakes, and emergency stop mechanisms to ensure safe operations.
Cabin or Platform: Depending on the design, some tractors have a cabin for the operator, while others may have a platform that allows the operator to stand while driving.
Product Show

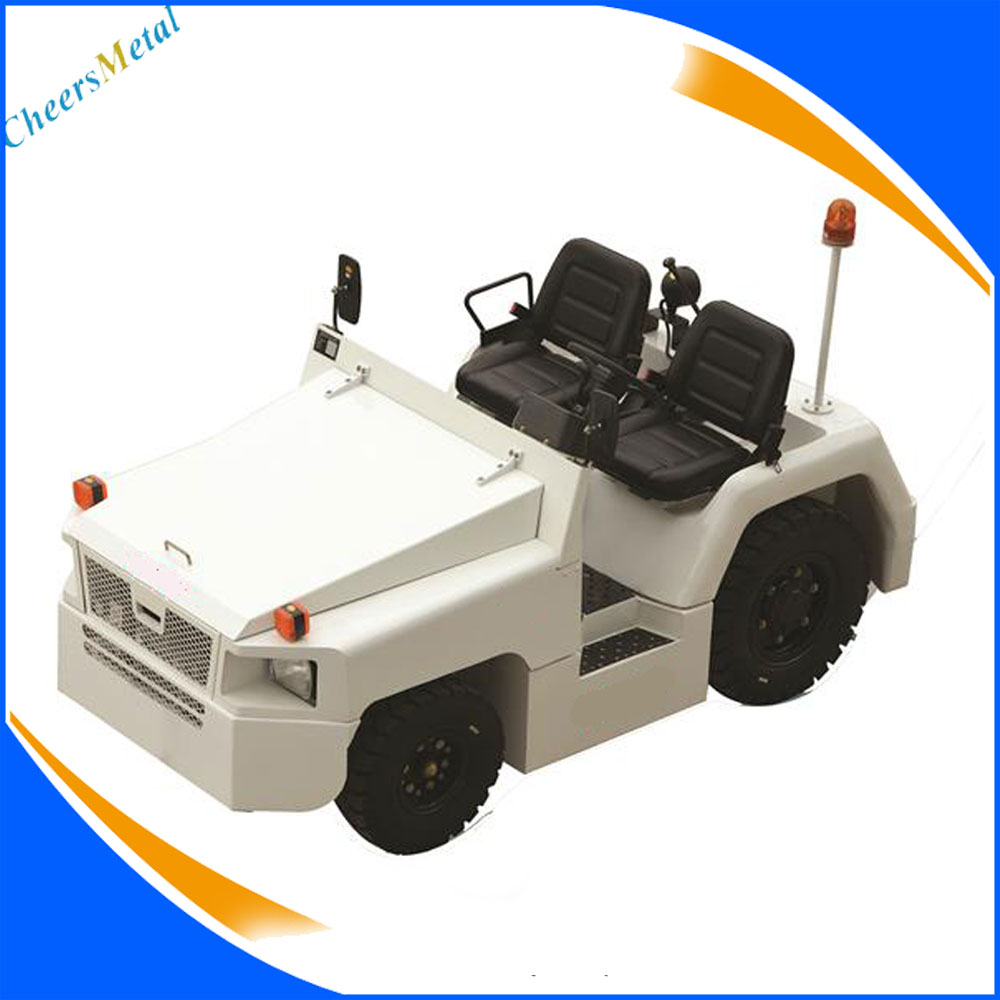

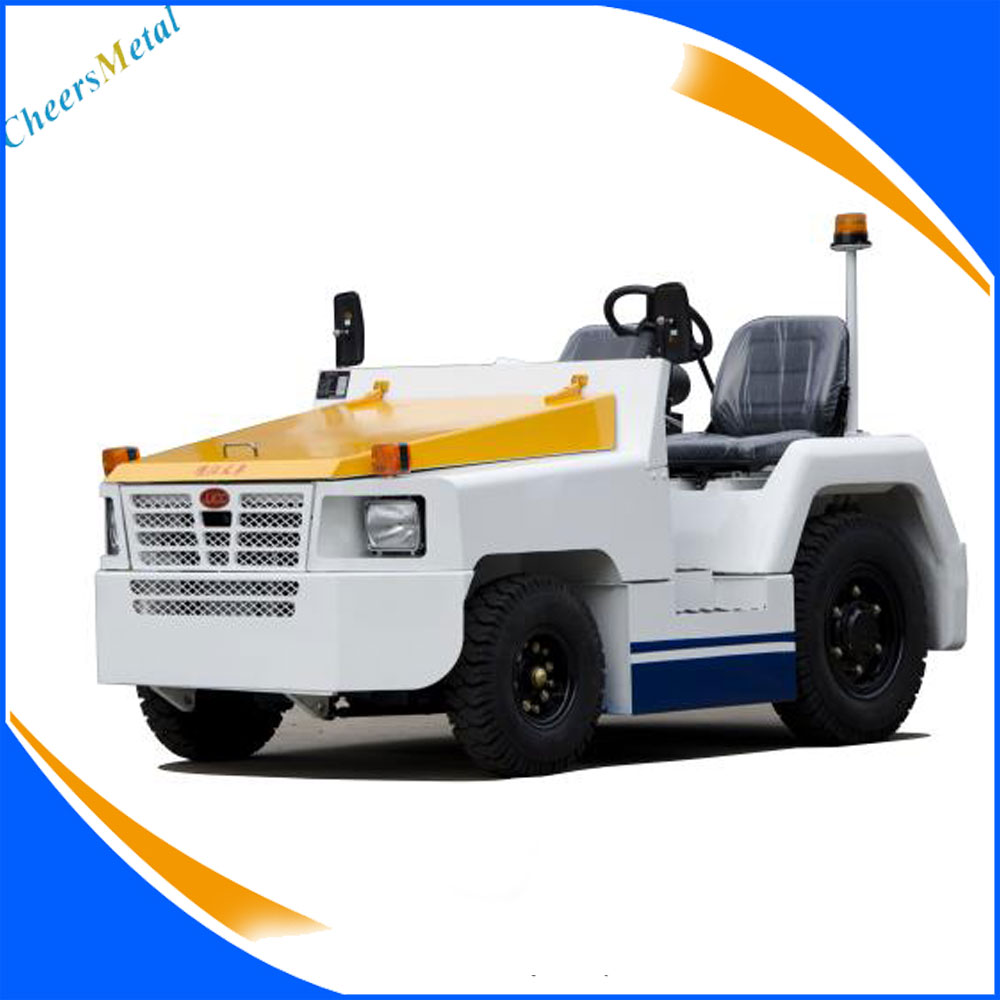

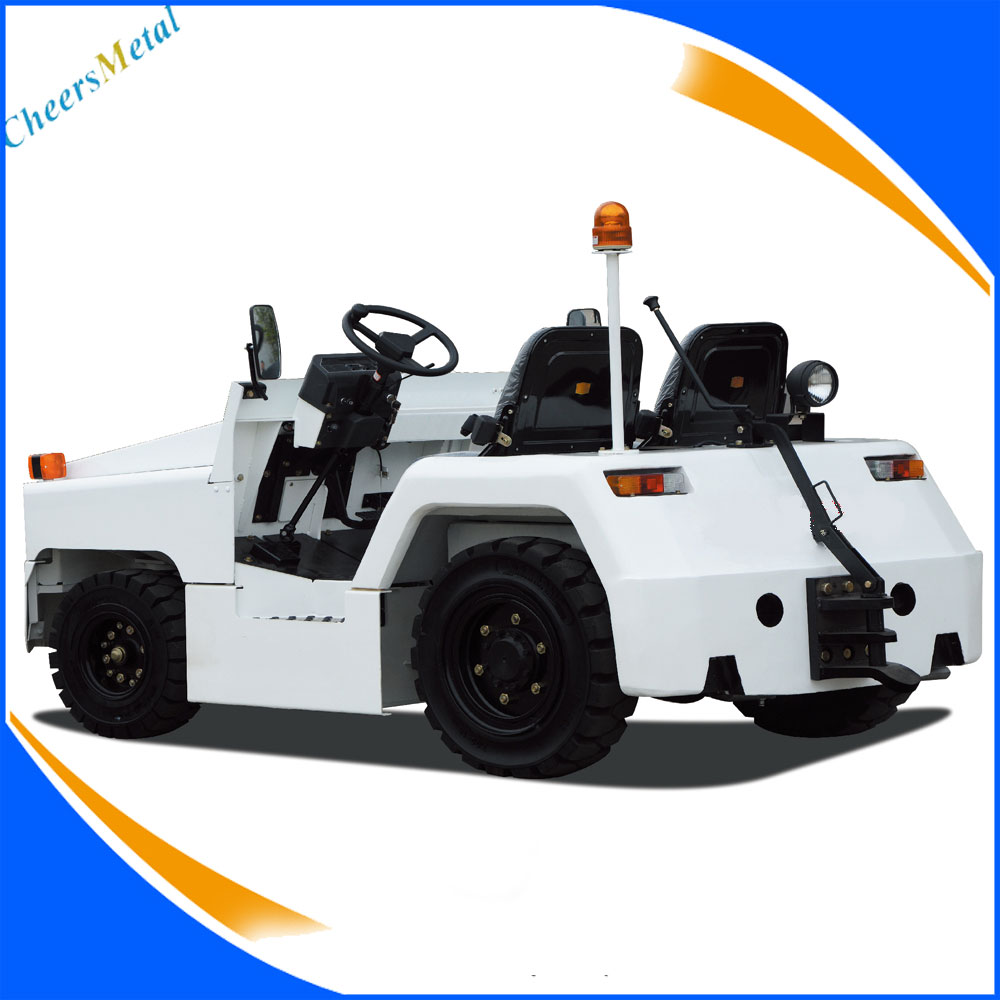

aircraft baggage tow tractor without driving cabin
It's mainly used in indoor or buliding with rain shed.

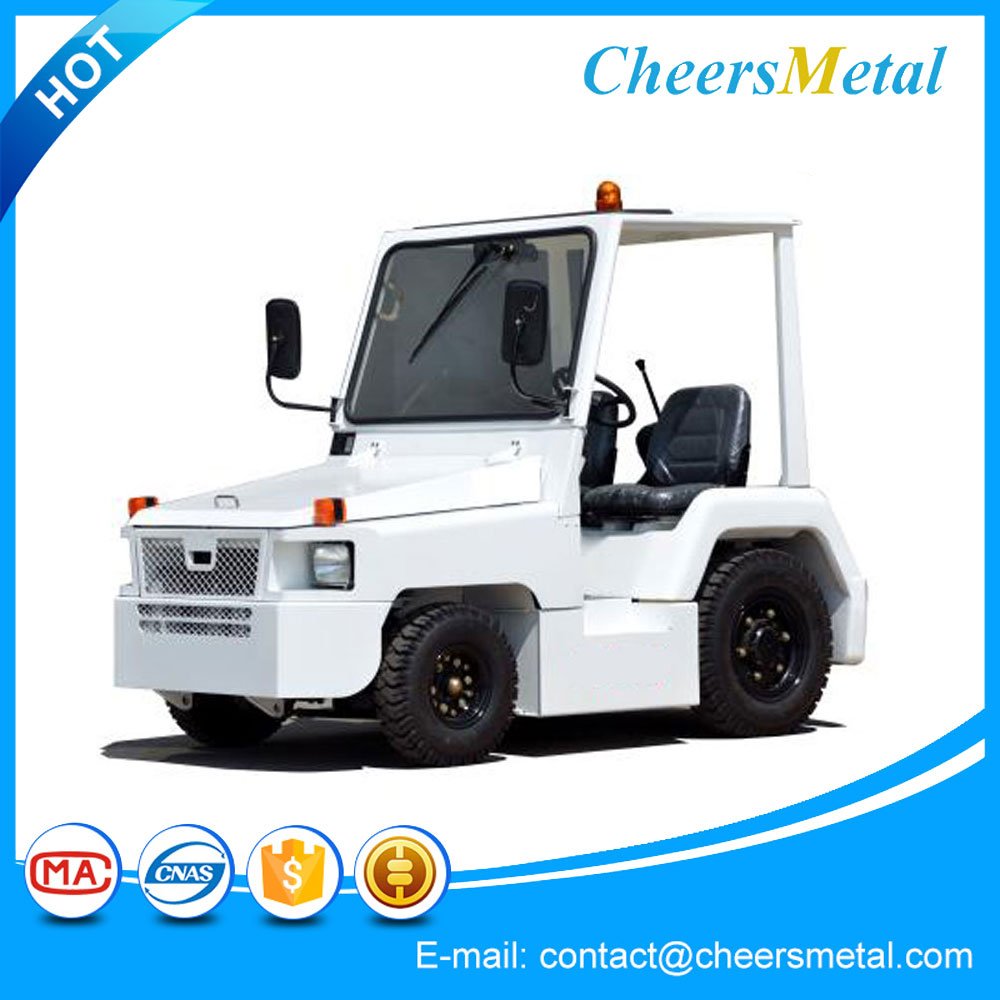

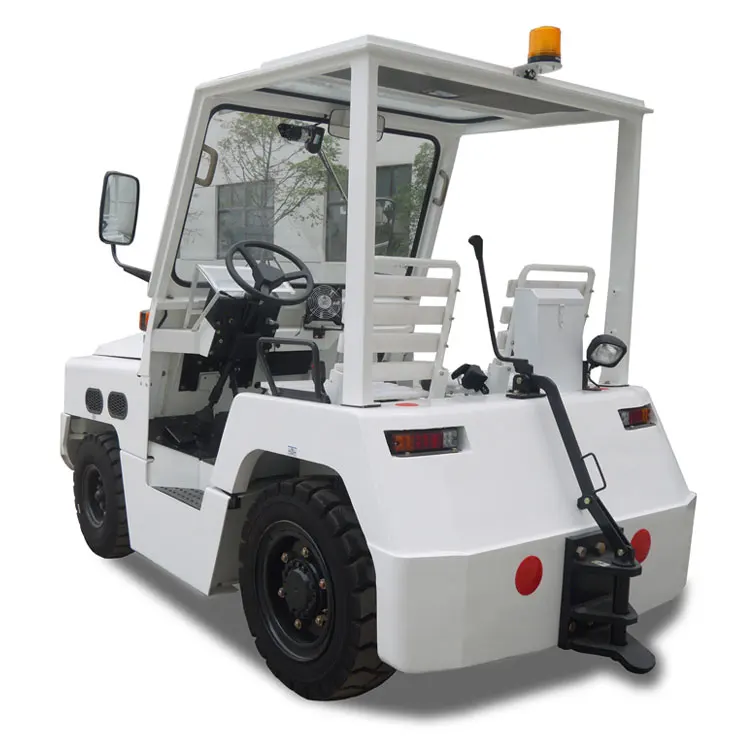

aircraft baggage tow tractor with simple driving cabin
It's mainly used in place without big rain and cold weather, t he price is USD750 higher if you need simple driving cabin.

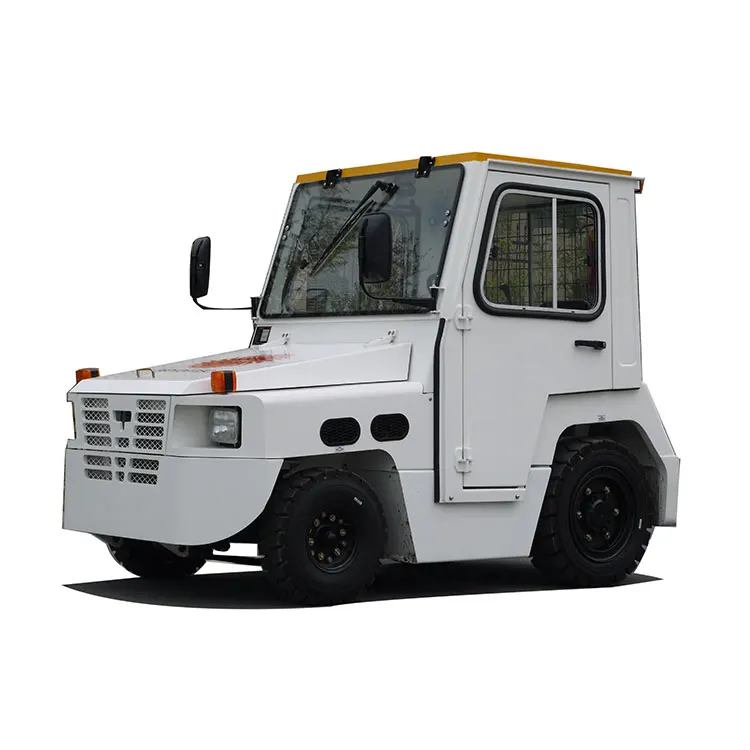

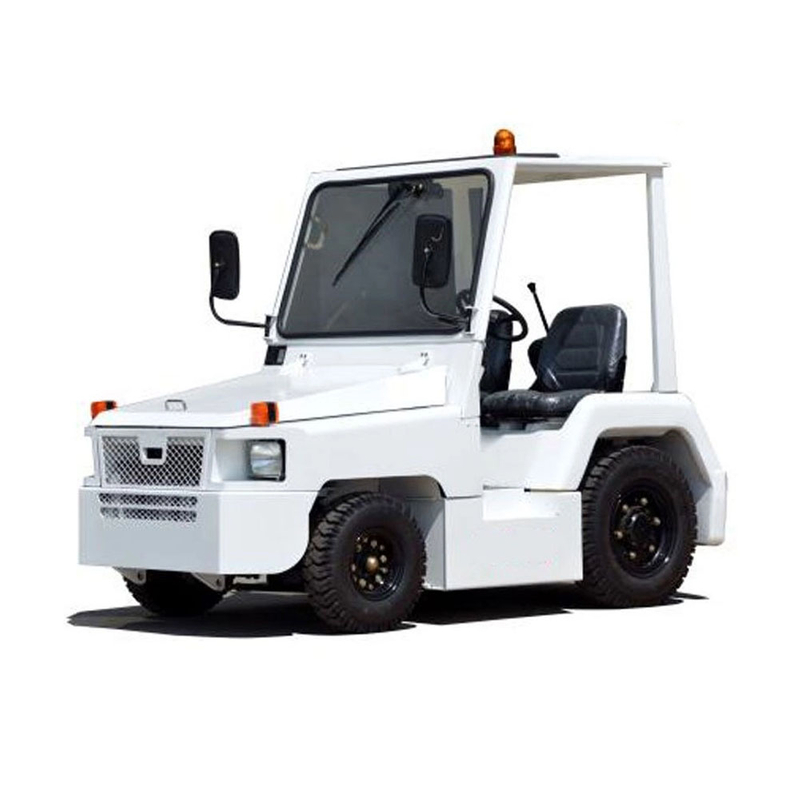

aircraft baggage tow tractor with complete driving cabin
It's the most popular type in market, the price is USD1450 higher if you need complete driving cabin.
Product Parameters
| Main Technical Specifications |
| Performance | Engine | Diesel |
| Model No. | CM-EPTT-1 | CM-EPTT-2 | CM-EPTT-3 |
| Max. Drawbar Pull | KN | 20 | 25 | 30 |
| Max.towed weight at dry even concrete surface | With One Trailer | Kg | 25000 | 32000 | 38000 |
| Travel Speed | Forward | km/h | 25 | 25 |
| Backward | km/h | 22 | 22 |
| Max.Gradeability | No Load | % | 38 | 35 |
| Dimension | Overall Length (With Coupler) A | mm | 3015 | 3015 |
| Overall Width B | mm | 1440 | 1440 |
| Overall Height C | mm | 1450 | 1450 |
| Wheel Base D | mm | 1620 | 1620 |
| Front Overhang E | mm | 635 | 635 |
| Rear Overhang (With Coupler) F | mm | 760 | 760 |
| Front Tread G | mm | 1250 | 1250 |
| Rear Tread H | mm | 1200 | 1200 |
| Min.Turning Radius / Outer I | mm | 3000 | 3000 |
| Floor Height J | mm | 425 | 425 |
| Seat Height K | mm | 980 | 980 |
| Center Height Coupler L | mm | 305/405 | 305/405 |
| Min.Ground Clearance M | mm | 165 | 165 |
| Tire | Tire Size | Front |
| 6.50-10-10PR(I) | 6.50-10-10PR(I) |
| Rear |
| 7.00-15-12PR(I) | 7.50-15-12PR(I) |
| Weight | Truck Weight (No Load) | kg | 3450 | 3900 | 4400 |
| Weight Distribution | Front Axle | kg | 1160 | 1120 | 1080 |
| Rear Axle | kg | 2290 | 2780 | 3320 |
| Engine | Displacement | cm3 | 3331 |
| Rated Output | KW/RPM | 47/2500 |
| Rated Torque | N.M/RPM | 200/1600 |
| Transmission | Hydraulic Transmission |
| Streering | Integral Power Steering |
| Brake | Service Brake | Hydraulic Drum Brake |
| Parking Brake | Acting On Driving Wheel Brake |
Parameters of aircraft baggage tow tractor
Three different models with different drawbar pull.
For 20KN Max drawbar pull model TE-20, the price is USD950 cheaper;
For 30KN Max drawbar pull model TE-30, the price is USD950 higher
Design Drawing

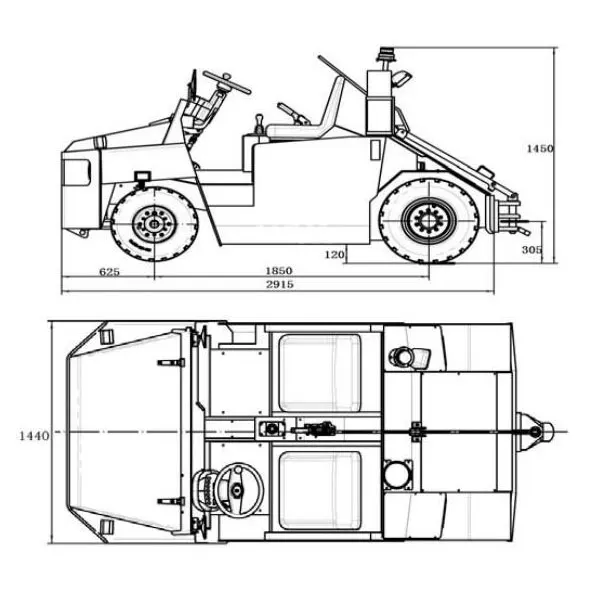

Drawing of aircraft baggage tow tractor
It's outline size drawing, sometimes it have some tolerance.
Optional Configuration
Optional parts for aircraft baggage tow tractor:
1) spare wheel with tire & rim (USD235/PC).
2) air conditioning (cold & warm, USD960/PC); 3) hot air blower (USD480/PC);
4) custom-built traction pins (mainly for push, USD195/PC);
5) small loading platform (USD480/PC);
6) moinitoring recording system (USD380/PC);
7) simple winter tool box (USD190/PC);
8) loop rope (USD50/PC).
Packing&Shipping

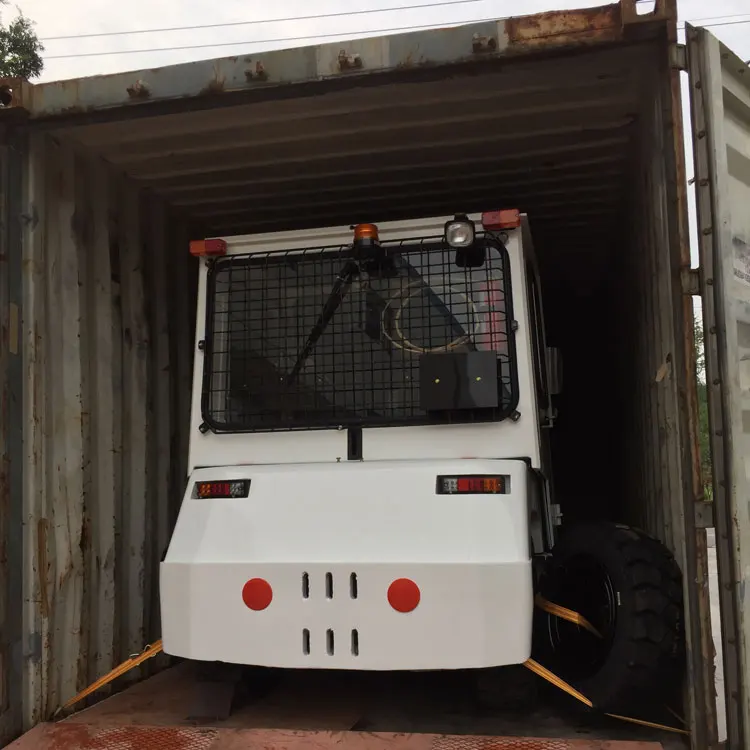

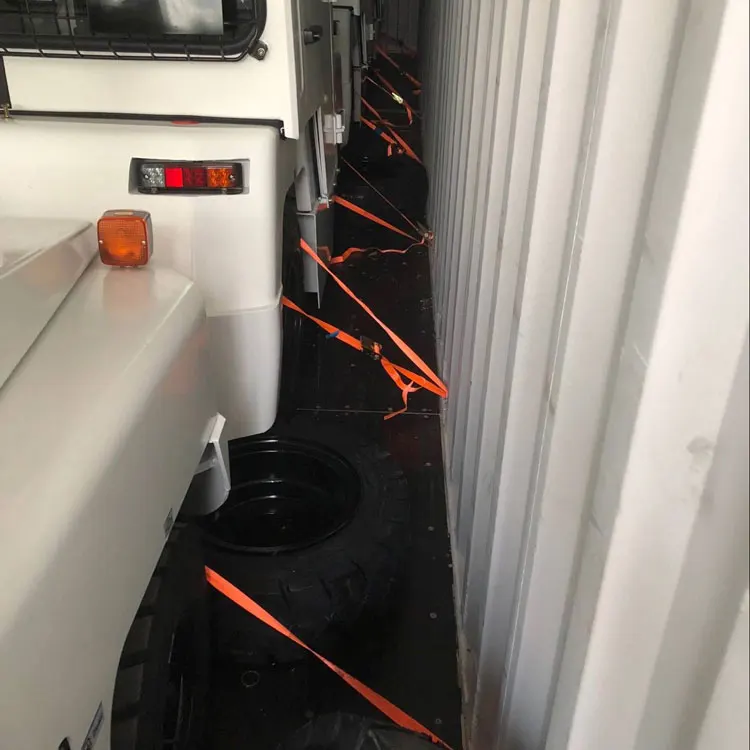

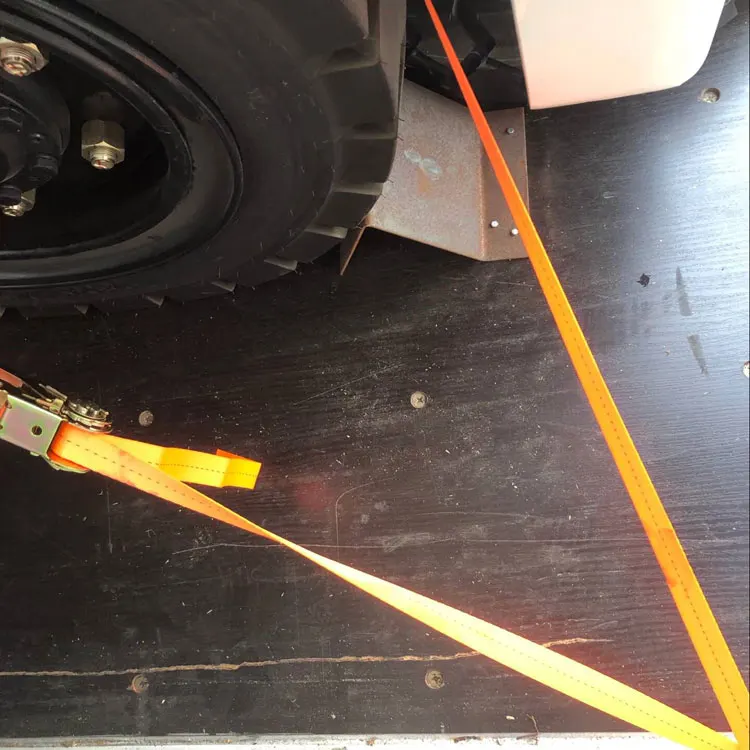

Loading pictures of
aircraft baggage tow tractor, Shipping quantity: 2PCS/20'GP, 4PCS/40'GP.

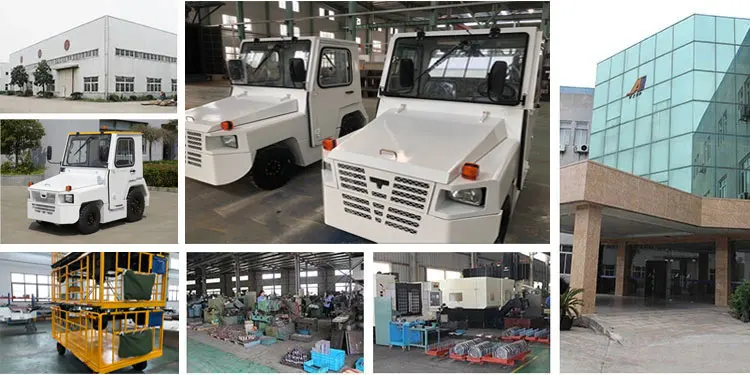

Company & Certificate
Excellent qulity & fast delivery
We are specializing in the production of aircraft baggage tow tractor and other airport ground equipment. The company has got inspection certificate for airport ground equipment issued by China National Construction Machinery Quality Supervision Testing Center and export license. Strong power, compact structure, beautiful shape, high speed and small turning radius make TD series baggage tractors more comfortable and easier to operate. Providing professional traction for different working conditions, TD series are widely favored by civil aviation, postal, port, railway and mining enterprises and exported to overseas market.

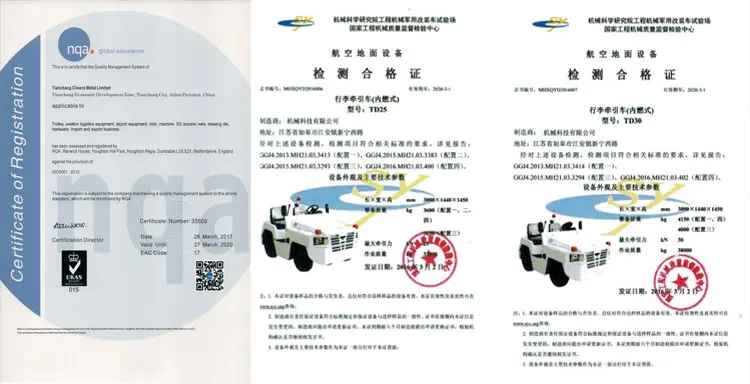

Certificate for aircraft baggage tow tractor
Certificate ISO9001 & Inspection certificate for Airport Tow Tractor.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for aircraft baggage tow tractor?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples for aircraft baggage tow tractor? is it free or extra ? Warranty?
A: Yes, we could offer the sample, extra fee will be collected. The standard warranty is one year.
Q: What is your terms of payment for aircraft baggage tow tractor?
A: 30% T/T in advance ,balance before shippment.
