The tow bar design complies with current aircraft tow bar standards, including SAE AS1614, SAE ARP1915E-2021, ISO 8267-1, and BS 1S0 9667.
Specification
1. Applicable Aircraft Model
TBM-A310
2. Adjustable Height Range
200–600 mm
3. Overall Dimensions
Total Length
3865 mm
Total Width
750 mm
4. Weight
275 kg
5. Main Tube Diameter
Φ159 mm
6. Tow Head Ring Opening Diameter
Φ80 mm
7. Lifting Mechanism
Composed of a gearbox, lead screw, and screw tube assembly. Manual rotation of the hand crank extends or retracts the screw tube rod, thereby adjusting the height of the tow bar relative to the ground.

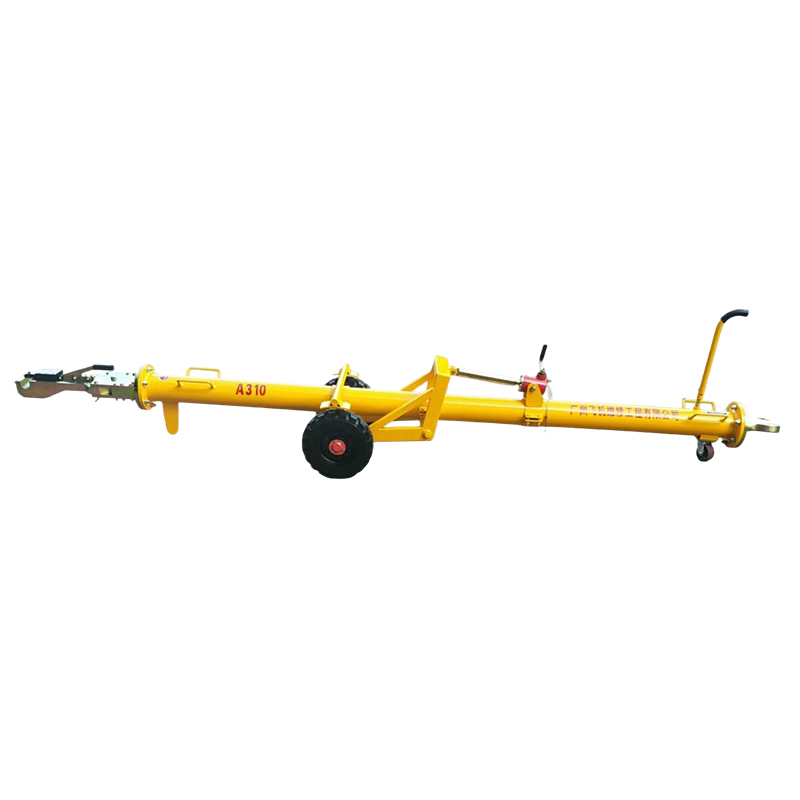

Product Picture
Why Choose Us
1. We supply high quality products with reasonable price;
Exported 15~20 full containers per month, Tianchang Cheers Metal Limited/Tianchang Avn Gse Nanjing Ltd. is focus on making and supplying airport ground equipment, airport baggage conveyor system & other aviation products. More than 10 years experience in oversea market,we have strong ability on quality and cost control. All our staffs believe that your success means our success, and we always do our best for that.
