Airport Aviation Ground Luggage Stretch Film Pallet Wrapping Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
CM-BZJ
Brand:
QIS

Product Description

Introduction

An airport wrapping machine, also known as a baggage wrapping machine or luggage wrapping machine, is a specialized piece of equipment used at airports to securely wrap passengers' checked baggage with a protective layer of plastic film. This wrapping process offers several benefits, including protection against tampering, damage, and moisture, while also providing additional stability to the baggage during transit.

Key features and functions of an airport wrapping machine include:

Baggage Protection: The primary purpose of the machine is to wrap baggage with a durable and transparent plastic film, adding a layer of protection to the baggage.

Damage Prevention: The plastic film helps prevent damage from rough handling, exposure to weather conditions, and potential scratches.

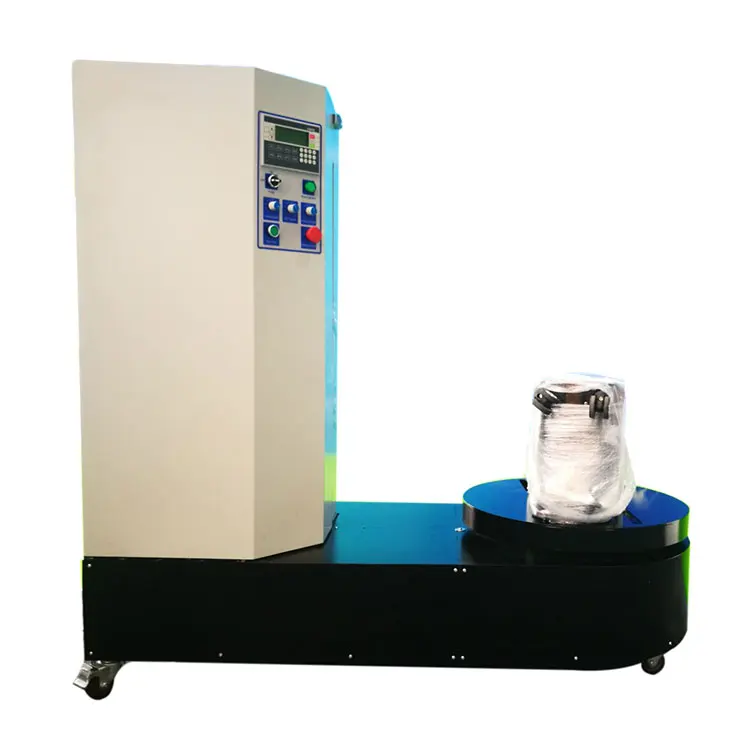

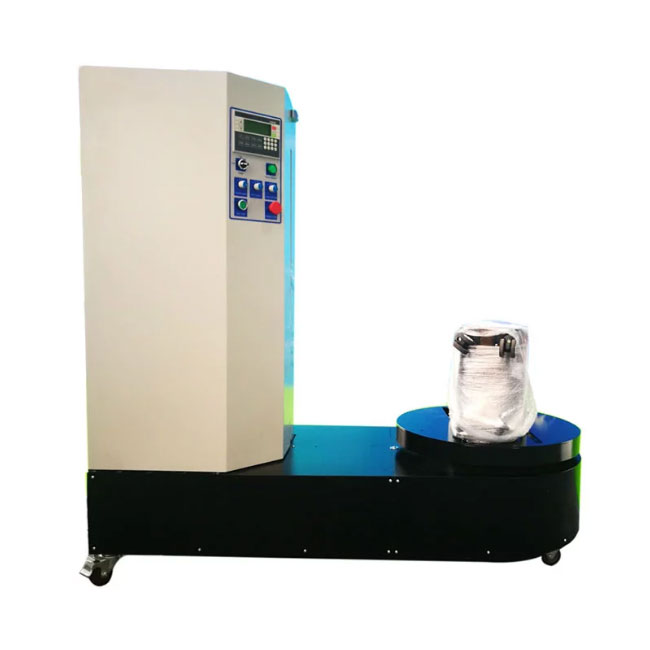

Product Show

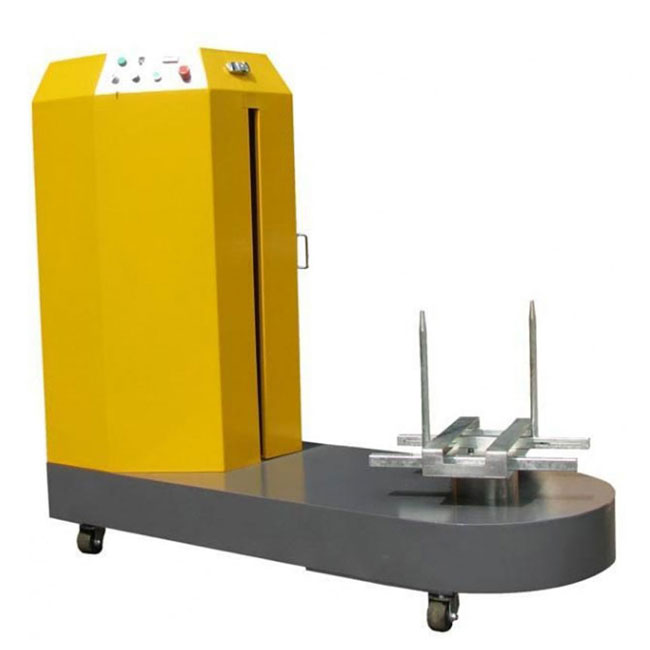

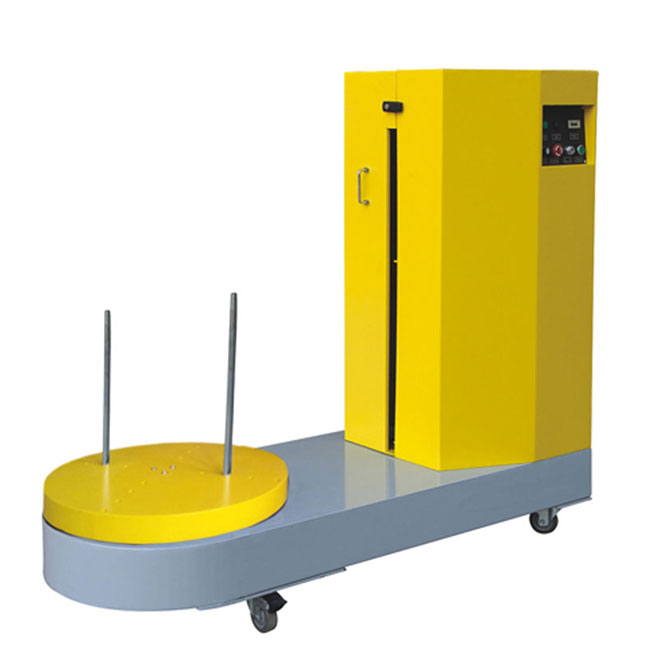

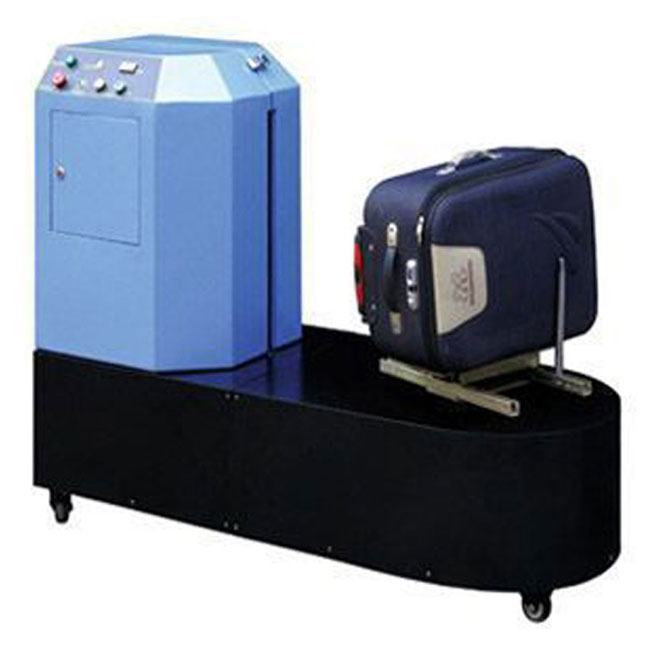

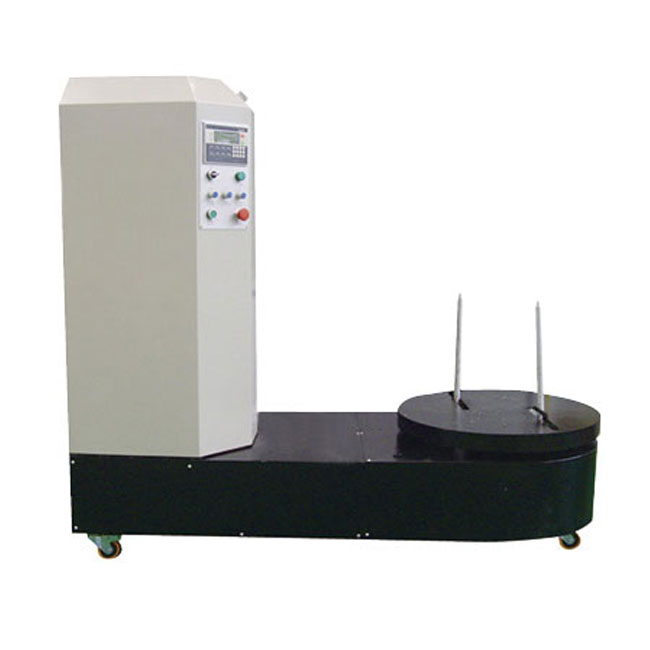

Airport luggage wrapping machines luggage airport

 It's popular in market, especially Asian and American market

Main Performance of Parts

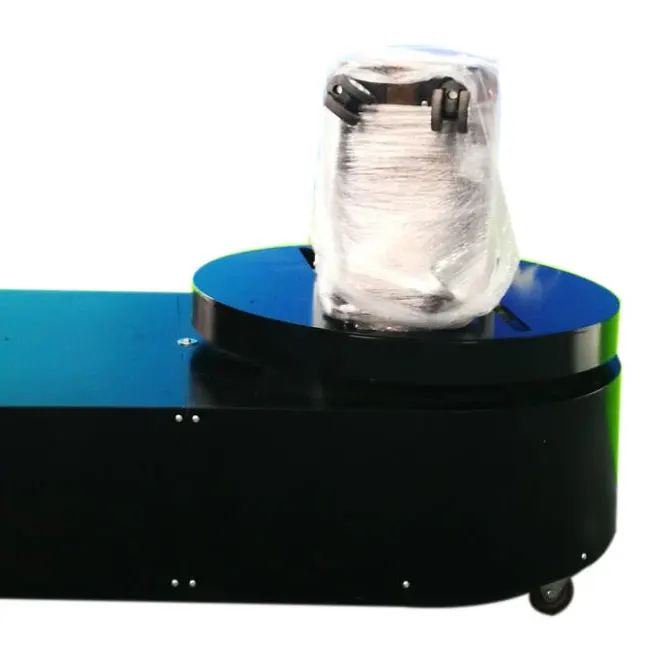

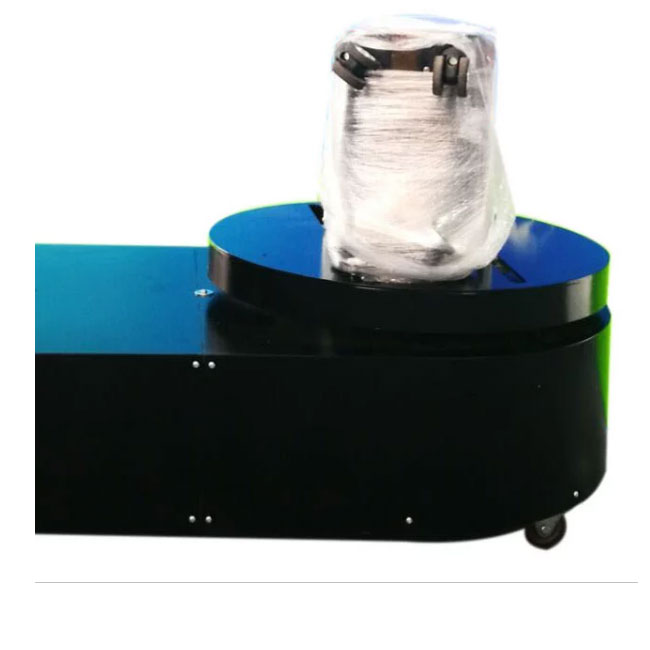

Turntable drive of Airport luggage wrapping machines luggage airport

 1) Motor drive, turntable variable frequency speed 6-20 rpm adjustable; 2) The turntable automatically resets; 3) The function of automatic clamping of goods;

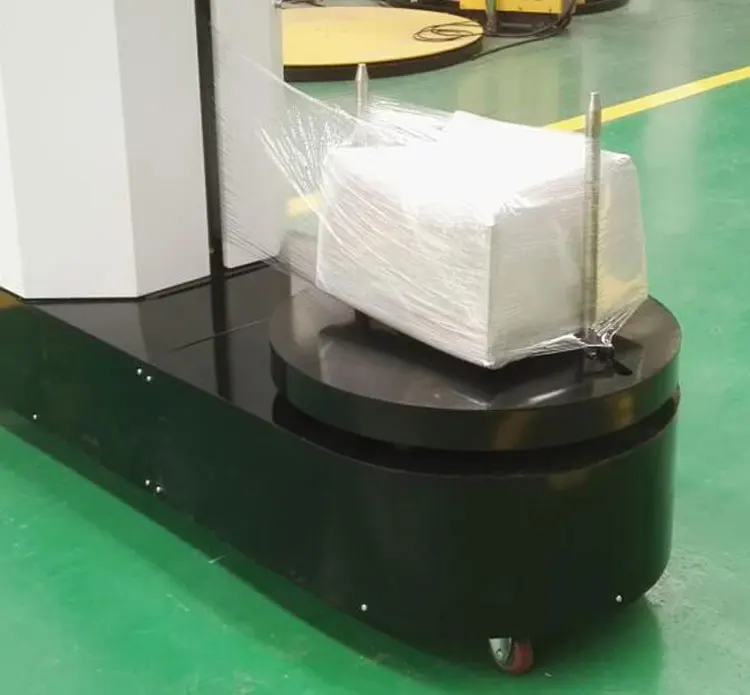

Film systems of Airport luggage wrapping machines luggage airport

 1) The film frame power pre-stretch mechanism, pre-stretching up to 250%; 2) The rising and falling speedof of the film frame can be adjusted, the film delivery speed can be adjusted; 3) The number of top and bottom windings is individually controlled; 4) Film system follow-up mechanism, it can be used after pulling.

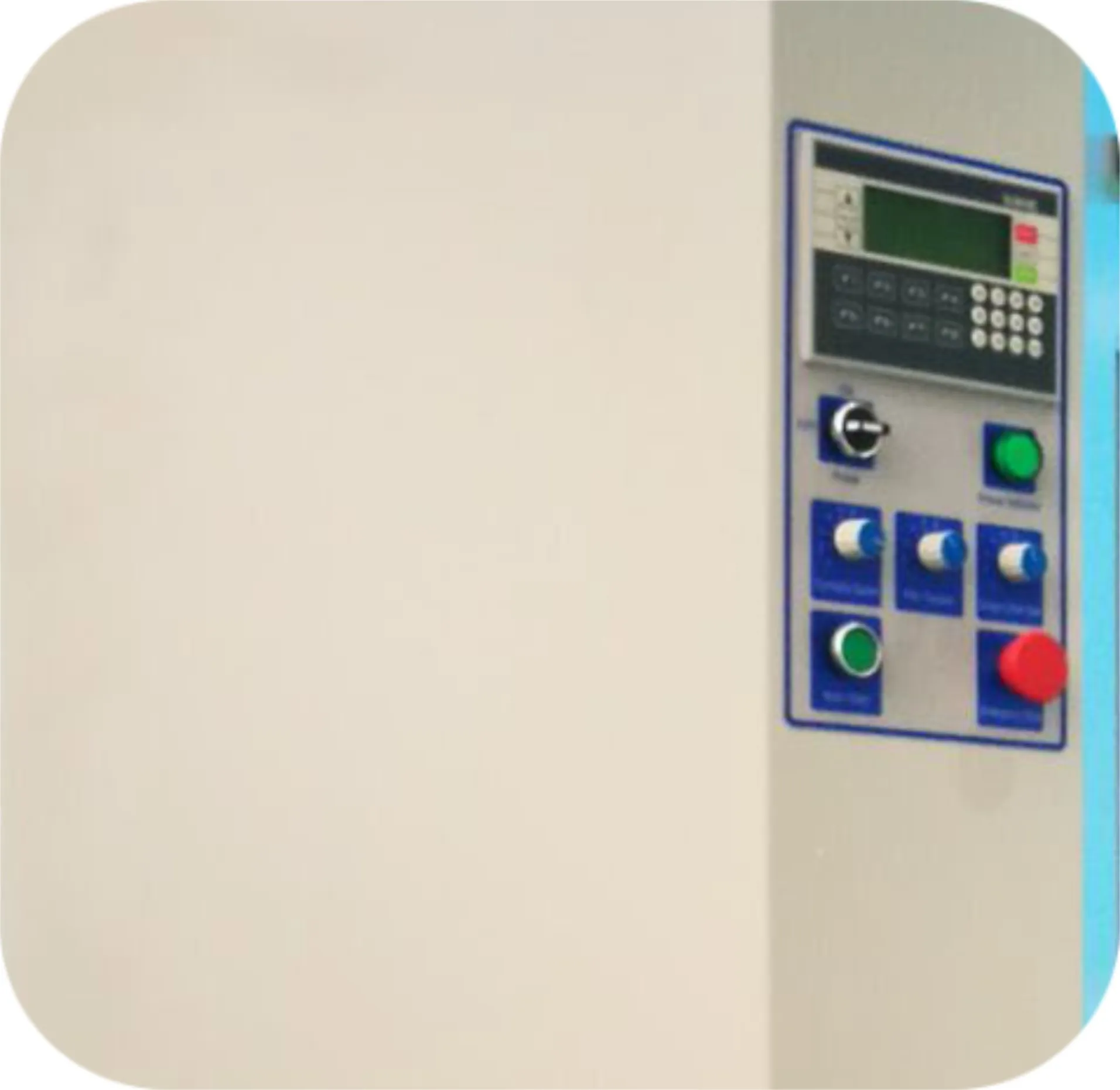

Control system of Airport luggage wrapping machines luggage airport

 1) PLC programmable control, text display adjusts the number and number of winding layers; 2) Photoelectric switch, automatic sense of the height of the goods; 3) Reinforced winding function for special protection of a certain part; 4) Top-to-top time setting function.


Technical Parameter

Airport Luggage Wrapping Machine
Wrapping length	400-1200mm
Wrapping width	180-500mm
Wrapping height	800mm (max.)
Power supply	220V/1.5KW
Turntable diameter	550mm
Turntable loading	100kg
Machine Weight	280kg
Turntable Speed	6-20 rpm/min
Packing material suit for machine	LLDPE stretch film; Thickness of film:17-35μm; Width of film:500mm; Film roll inner diamter: 76.2mm Film roll maximum outer diameter: 250mm

Packing&Shipping

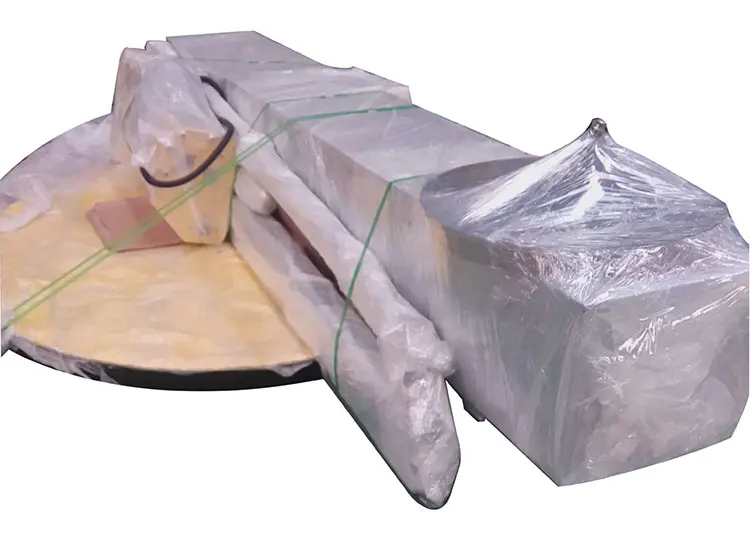

Packing of Airport luggage wrapping machines luggage airport

 It's standard packing way.  Packing size: 180cm*65cm*155cm;
 N.W.: around 300KG.

Steel Frame packing of Airport luggage wrapping machines luggage airport

 Shipping quantity: 6PCS/Package
If you need packing way as this, need extra packing fee USD695 for this steel frame packing .  It can be packed by wooden crate too, 1pc/wooden crate, the cost of wooden crate is USD200/PC.

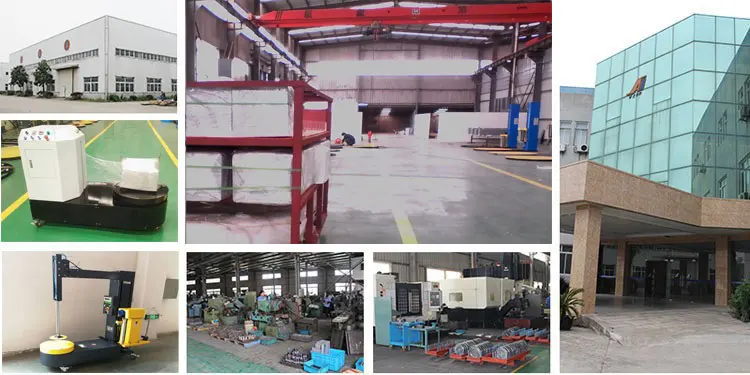

Company & Certificate

Excellent qulity & fast delivery

 We are specializing in the production of Airport luggage wrapping machines luggage airport, our goods are widely favored by civil aviation, postal, port, railway and mining enterprises and exported to overseas market.

FAQ

 Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for Airport luggage wrapping machines luggage airport?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples for Airport luggage wrapping machines luggage airport? is it free or extra ? Warranty?
A: Yes, we could offer the sample, extra fee will be collected. The standard warranty is one year.

Q: What is your terms of payment for Airport luggage wrapping machines luggage airport?
A: 30% T/T in advance ,balance before shippment.
