Aviation Airport luggage Conveyor Belt loader

Material: Steel
MOQ:5PCS
Availability:
Quantity:
Inquire Add to Basket

  • CM-CBLE

  • QIS

  • CM-CBLE

Introduction

Airport baggage belt conveyor loaders play a critical role in ensuring the timely and organized loading of baggage and cargo onto aircraft. They contribute to the smooth functioning of airport ground operations and help maintain the punctuality of flights by efficiently transferring baggage from the terminal to the aircraft's cargo hold.

Key features of an airport baggage belt conveyor loader include:

Belt Conveyor System: The loader is equipped with a continuous belt conveyor that moves baggage and cargo from the terminal to the aircraft's cargo hold.

Adjustable Height: The height of the conveyor can often be adjusted to match the aircraft's cargo hold door, allowing for seamless loading.

Loading Capacity: Baggage loaders come in different sizes and loading capacities to accommodate various aircraft types and loading requirements.

Product Description
Name
Aviation luggage Conveyor Belt loader，Airport Conveyor Belt loader
Gearbox
Automatic
Maximum power
35.4/2500 KW/r/min
wheelbase
2900 mm
The overall size
8190 x 2130 x 2020 mm
Minimum turn radius
<8 meters
Minimum ground clearance
135 mm
Conveyor arm size (L x W)
8000 x 880 mm
Transmission bandwidth
700 mm
Transfer speed
15 to 20 meter/min
Transmission height (front)
1200 ~ 4200 mm
Transmission height front (rear)
520 ~ 1300 mm
Maximum transfer angle
30.2 degrees
Maximum average transfer load
135 kg/m
Maximum single delivering load
400 kg

Which Aircraft is our Airport Aircraft Baggage Belt Conveyor Loader applied for?

It is suitable for all aircraft with cargo door height between 1200mm and 4200mm.
Detailed Images

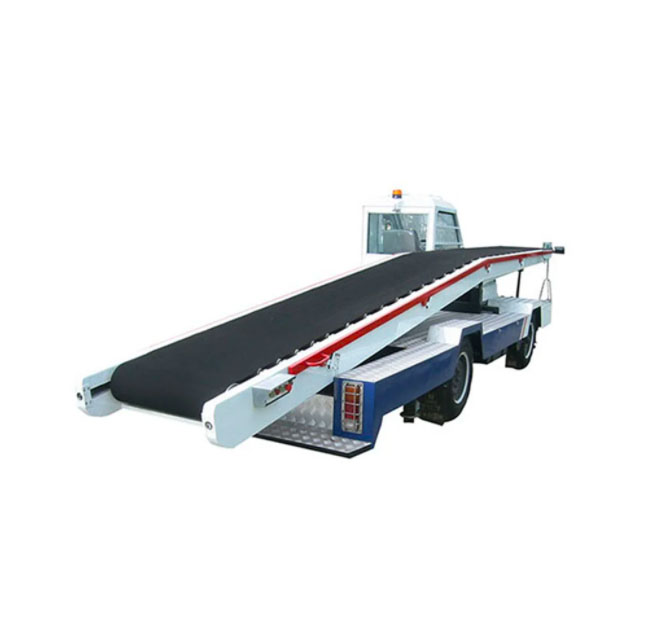

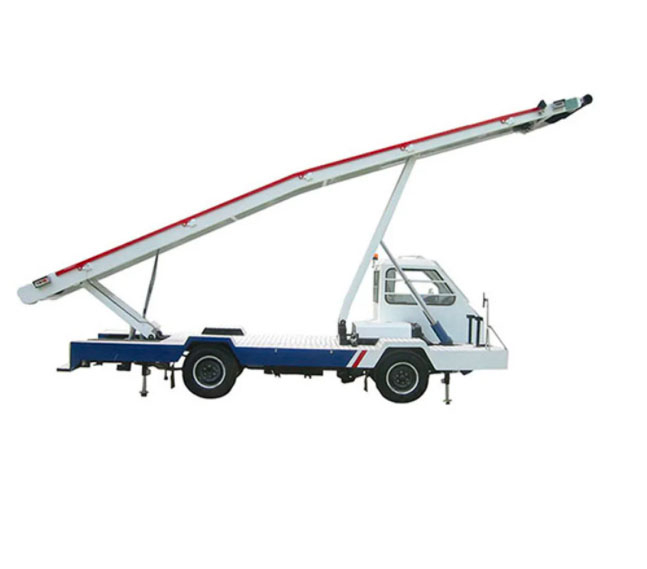

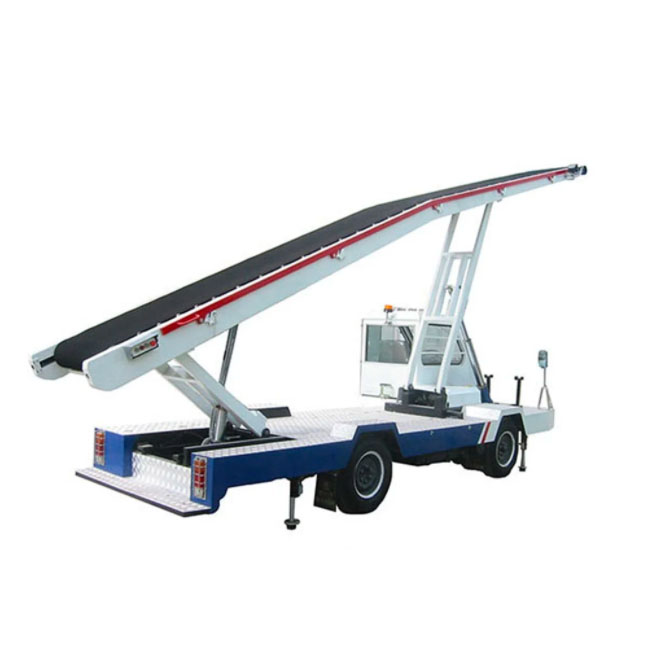

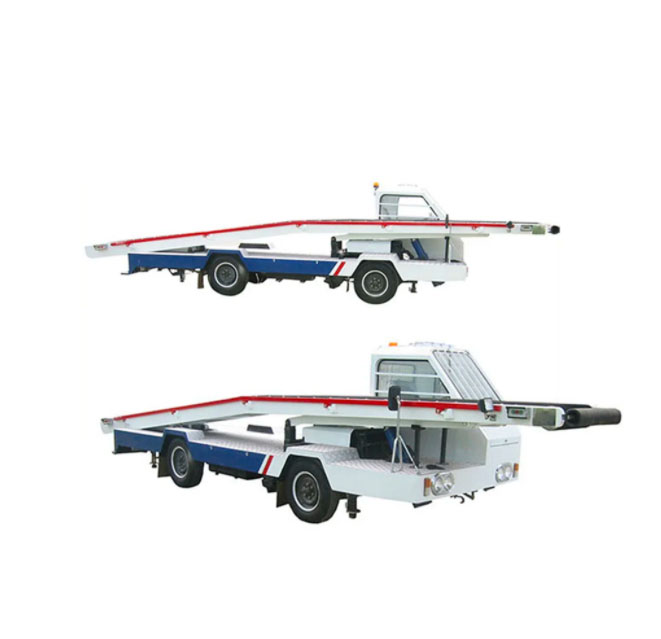

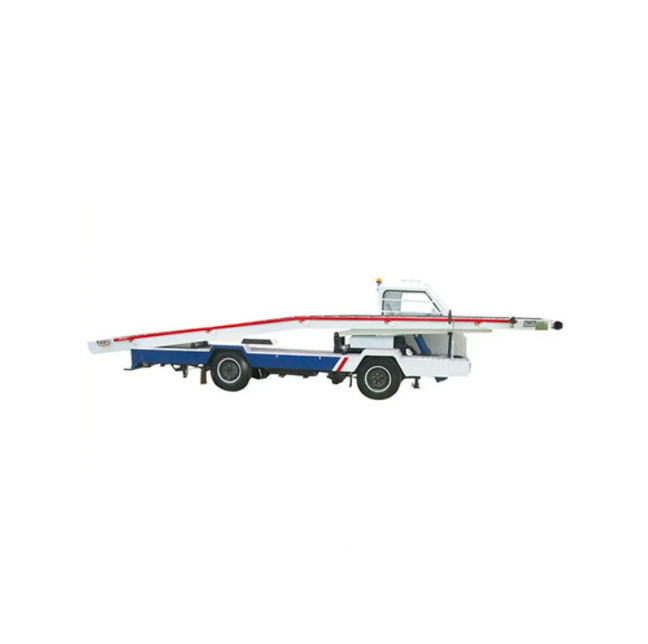

Detailed Image of  Aviation Airport luggage Conveyor Belt loader
Product packaging
Packing of Aviation Airport luggage Conveyor Belt loader
It's packed by 40'HQ container, the shipping quantity is 1piece per 40'HQ.
Company Introduction

Excellent qulity & fast delivery

We are specializing in the production of Aviation Airport luggage Conveyor Belt loader
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for Aviation Airport luggage Conveyor Belt loader?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.

Q: Do you provide samples? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record.
The standard warranty is one year.

Q: What is your terms of payment for Aviation Airport luggage Conveyor Belt loader?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need driving cabin for Aviation Airport luggage Conveyor Belt loader?

Q2: How many do you need?

Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.

Wecome to contact us at any time.
