ACD-16B
CHEERSMETAL

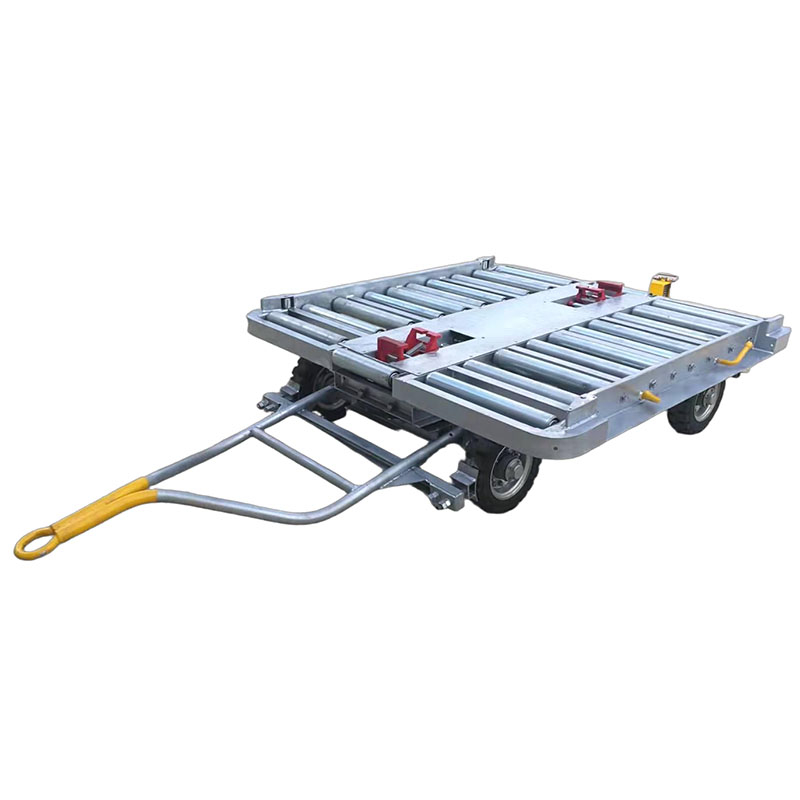

This Aviation Luggage Container Dolly is specially designed for airport ground transportation of ULDs and luggage containers. It adopts hot‑dip galvanized steel structure, featuring strong load capacity, corrosion resistance and long service life. Equipped with smooth roller platforms, it enables easy loading and unloading of containers. Reliable locking clamps firmly fix cargo units during transit to prevent sliding. Flexible solid tires and a sturdy towing drawbar ensure stable towing operation. Widely used in apron, cargo terminals and baggage sorting areas, it improves airport logistics efficiency and meets strict aviation ground handling standards.
mainly used to load LD1, LD2, LD3 aviation containers, container orientation adjustable, easy to load.
| Overall size | 3750mm × 1800mm × 560mm |
| Platform size | 1920mm × 1600mm × 508mm |
| The main frame is made by 8 # channel steel | |
| Tire size | 15” × 4.5”, ultra-wear-resistant solid tires |
| Rated speed | 25km/h |
| Rated load | 2000kg |
| Weight | around 720kg |
Our company covers an area of 40,000 square meters, with more than 20,000 square meters of production workshops and more than 4,000 square meters of office buildings. Currently, the company has employed about 70 workers, including 5 engineering technicians, and 2 professor-level senior engineers. Since its establishment, the company has developed for more than 20 years along with the development of China's civil aviation, and has formed the airport ground equipment, airport logistics equipment and air containers three series, covering a total of more than 50 varieties of products. All air containers have been available to TSO or PMA airworthiness certification by Civil Aviation Administration of China (CAAC) and part of the air containers have been adopted the TSO design approval of the United States Federal Aviation Administration (FAA) at home.
1. We supply high quality products with reasonable price;
2. We are the professional manufacturer;
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.
