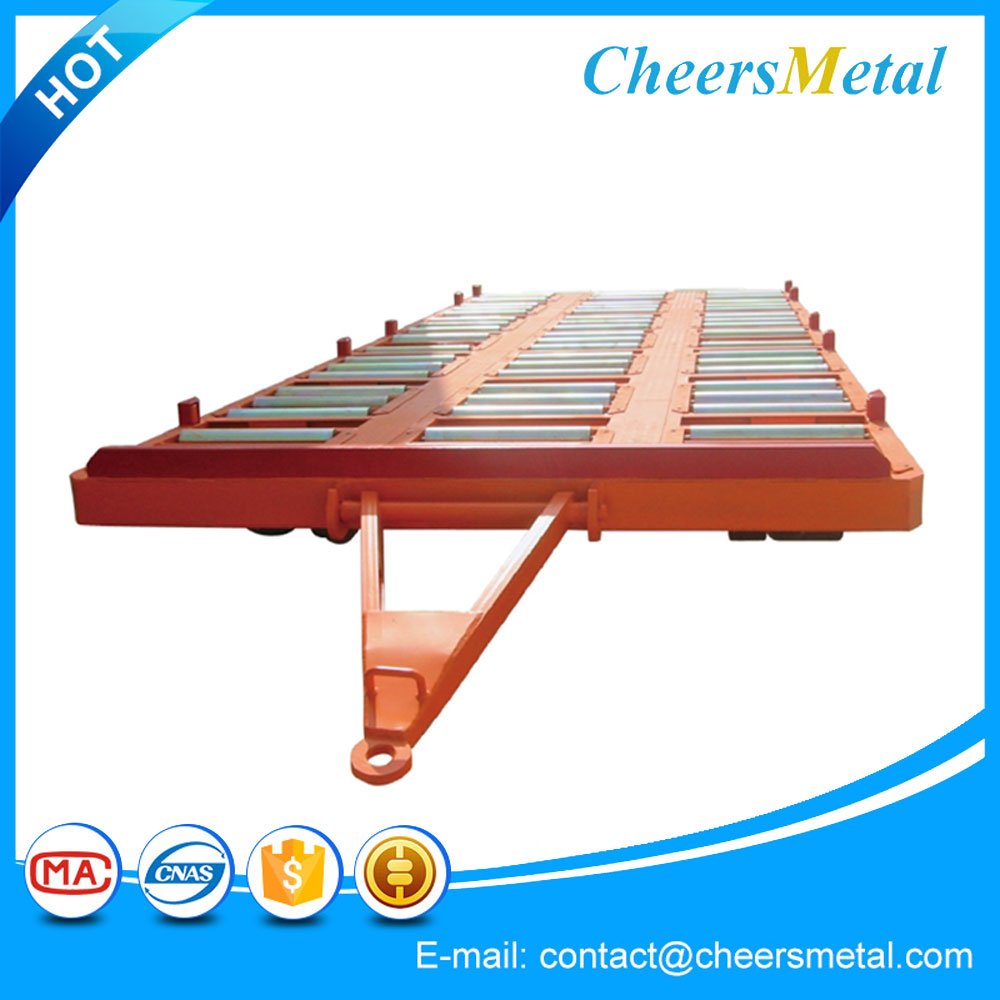

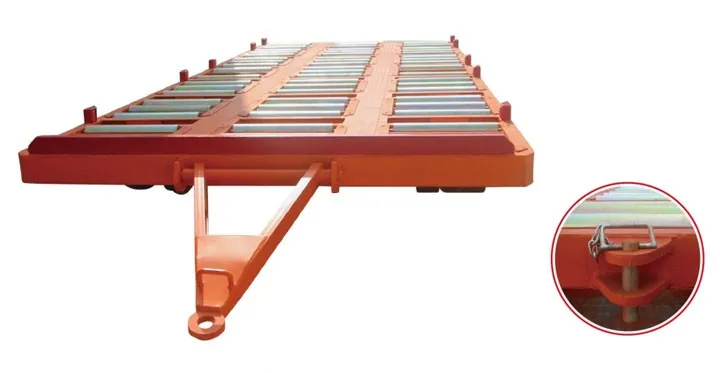

An aviation pallet dolly, often referred to as an aircraft pallet dolly or aircraft cargo dolly, is a specialized ground support equipment used at airports to transport and handle aviation pallets, containers, and other cargo units. These dollies play a vital role in the efficient loading, unloading, and movement of cargo between storage areas, aircraft, and cargo handling facilities.
Aviation pallet dollies are integral to the smooth and effective movement of aviation cargo. By providing a reliable and dedicated means of transporting cargo units, these dollies contribute to the streamlined operations of cargo handling at airports, ensuring the timely and organized loading and unloading of aircraft for airfreight transportation.
Main function
For transportation of P1P/P6P/PLA/PRA/P7E pallet with Max payload of 18 ton.
SPECIFICATION OF PALLET DOLLY |
| Load | Rear | Max Payload(kg) | 18000 |
| Overall dim(mm) | 7925(L)*2725(W)*1636(H) | Wheel base(mm) | 4348.5 |
| Towbar height dropped position(mm) | 658 | Platform Height(mm) | 536 |
| Rear wheels(mm) | 400*130 | Length Between Tyres(mm) | 1925 |
| Roller dia(mm) | 89 | Front Wheels(mm) | 260*160 |
Feature
1.Heavy duty channel profile steel & tube welded framework galvanized roller bed floor for easy operation;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.Tyre:Solid cushion for longer life;
4.Tow bar for multi-dolly linkage;
5.Powered brush or blast & user's optional finish paints
6.Unit ID number pad at request
