Airport pallet dollies are essential for the effective movement of cargo between storage facilities and aircraft, contributing to the overall efficiency of cargo operations at airports. By providing a reliable and versatile means of transporting cargo units, these dollies enhance the functionality of ground support operations and ensure the timely and organized loading and unloading of aircraft.
Key features of an airport pallet dolly include:
Wheels and Mobility: Dollies are equipped with wheels that allow them to be easily moved on the airport apron or tarmac.
Towing Mechanism: Some dollies can be towed by tug vehicles or other towing equipment to transport cargo across longer distances.
Operator Controls: The dolly's operator cabin contains controls for steering, braking, and maneuvering the dolly.
Main function
For transportation of P1P/P6P/LD1/LD2

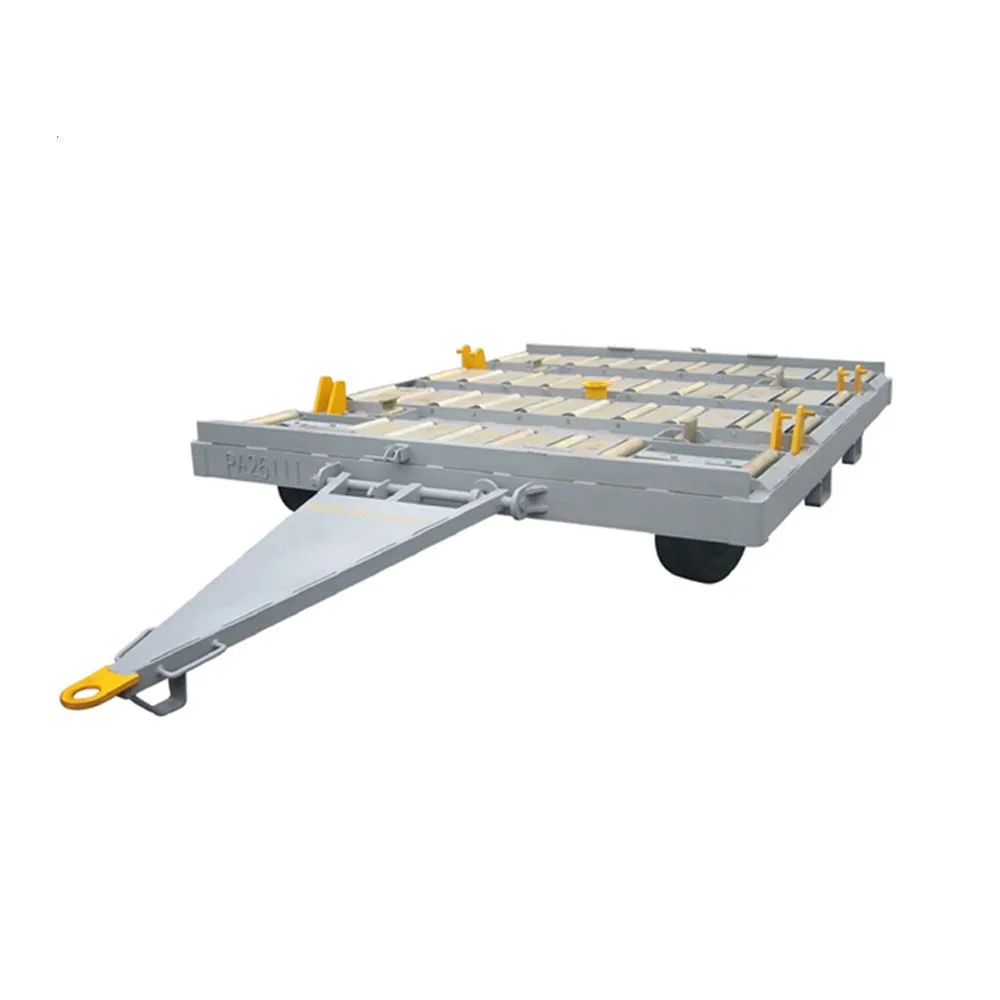

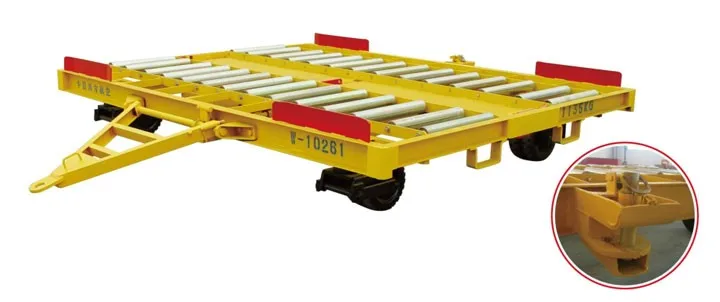

SPECIFICATION OF PALLET DOLLY |
| Load | Side | Max Payload(kg) | 7000 |
| Tare(Kg) | 1103 | Wheel base(mm) | 1600 |
| Overall dim(mm) | 4109(L)*3400(W)*1563(H) | Platform Height(mm) | 508-518 |
| Towbar height dropped position(mm) | 625 | Length Between Tyres(mm) | 2484 |
| Rear wheels(mm) | 350*100 | Front Wheels(mm) | 320*125 |
| Roller dia(mm) | 76 | Max speed(Km/h) | 25 |
| Min turn radius(mm) | <=4500 |
|
|
Feature
1.Tyre:solid cushion for long life;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.2 Stoppes each at both ends for sides guides;
4.Tow hitch at rear end for multi-dolly toweling linkage;
5.28 Galvanized rollers chequered plate walkways;
6.Tow bar for multi-dolly linkage & brake functions
7.fork tynes at both sides support orklift handing
8.Powered brush or blast & user's optional finish paints
9.Unit ID number pad at request
Our company covers an area of 40,000 square meters, with more than 20,000 square meters of production workshops and more than 4,000 square meters of office buildings. Currently, the company has employed about 70 workers, including 5 engineering technicians, and 2 professor-level senior engineers. Since its establishment, the company has developed for more than 20 years along with the development of China's civil aviation, and has formed the airport ground equipment, airport logistics equipment and air containers three series, covering a total of more than 50 varieties of products. All air containers have been available to TSO or PMA airworthiness certification by Civil Aviation Administration of China (CAAC) and part of the air containers have been adopted the TSO design approval of the United States Federal Aviation Administration (FAA) at home.
Why choose us
1. We supply high quality products with reasonable price.
2. We are the professional manufacturer
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.
