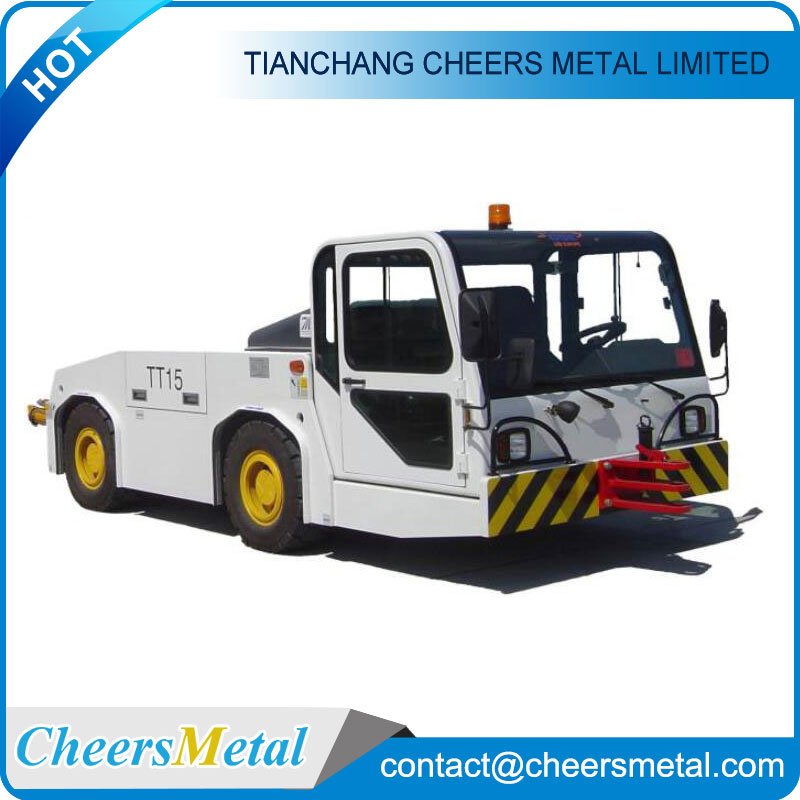

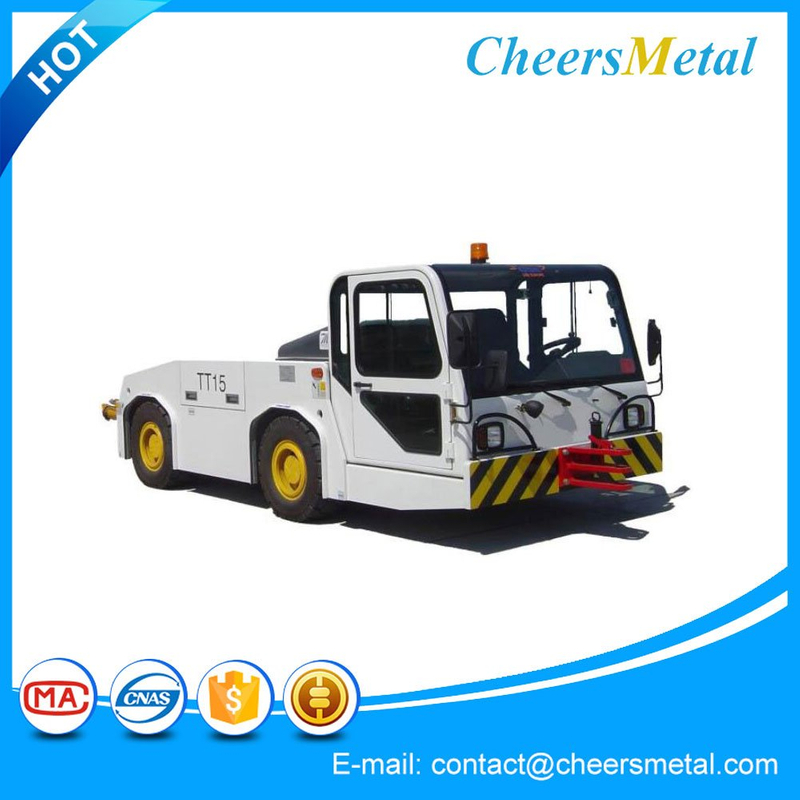

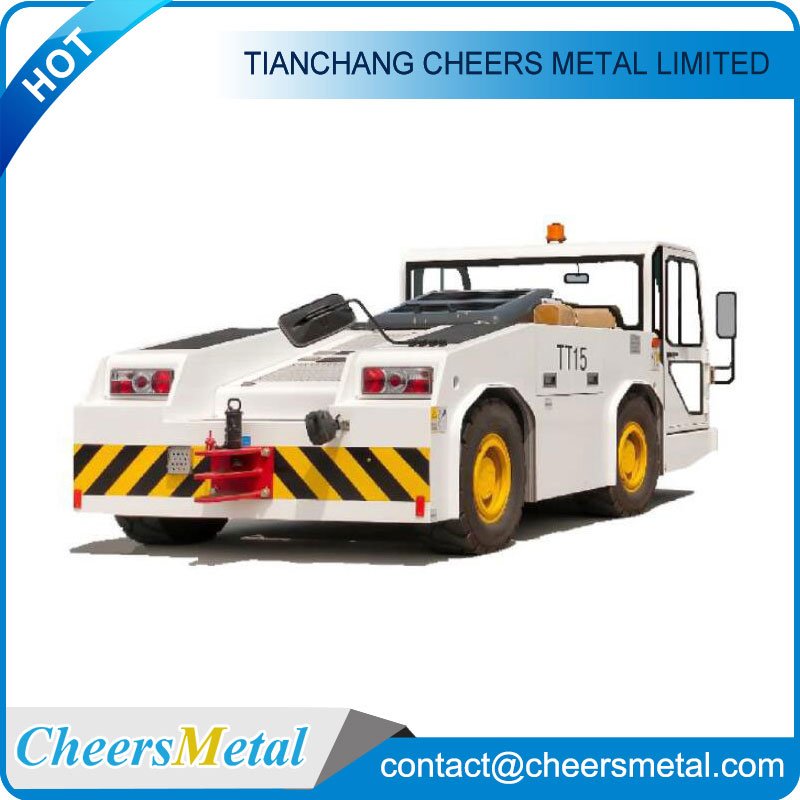

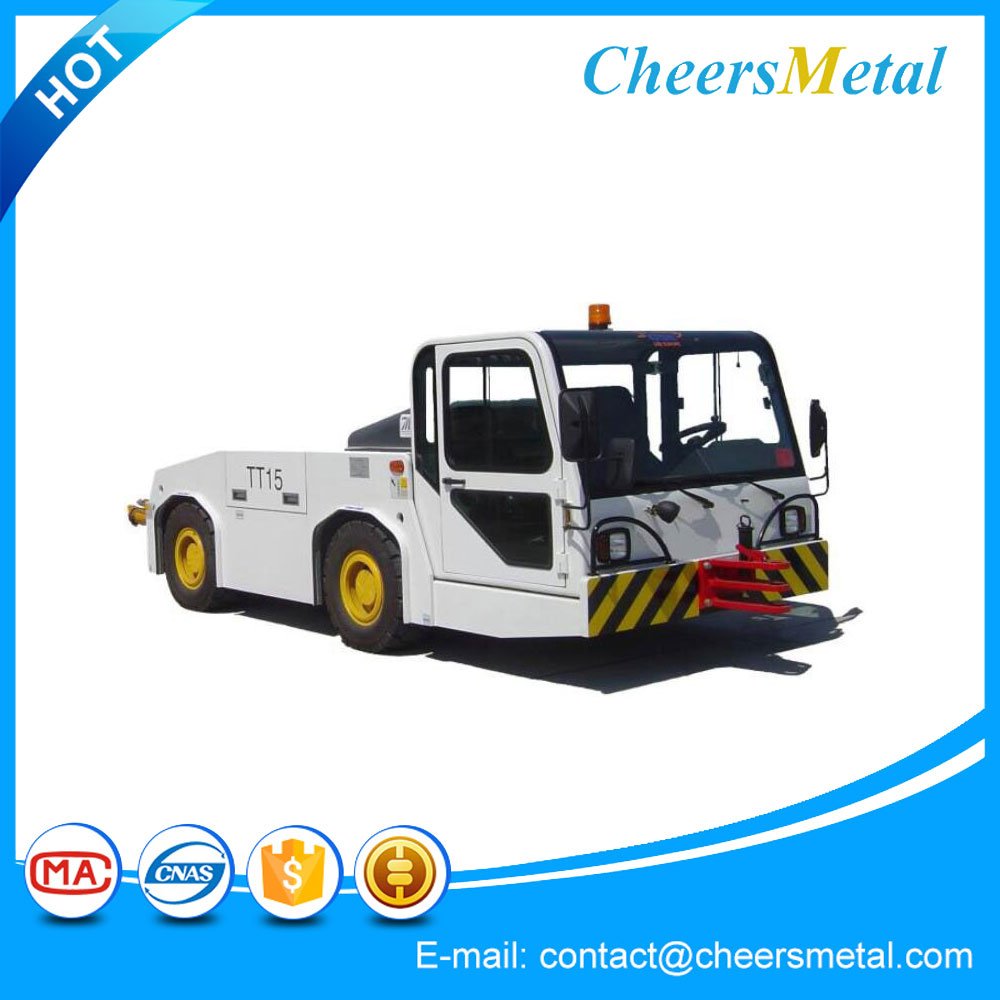

Conventional 4 wheels IATA aircraft tow tractor

The Conventional aircraft tow tractor, as one model of our series conventional aircraft tow tractors that can be used for pushback on small/medium commercial aircrafts. Features a compact, low profile design, power-shift transmission drive and spacious cabin. It can be used for gate push back as well as maintenance towing.
Availability:
Quantity:
  • WGQY15

  • CheersMetal

  • TT-15

Product Description

An aircraft tow tractor, often referred to as an airplane tug or aircraft towing vehicle, is a specialized vehicle used at airports to push back, tow, and maneuver aircraft on the ground. These tractors play a pivotal role in safely and efficiently positioning aircraft at gates, taxiing to runways, and navigating various areas within the airport.

Key features of an aircraft tow tractor include:

Towing Capability: Aircraft tow tractors are designed to have sufficient power and traction to move aircraft of different sizes, ranging from smaller regional jets to large commercial airliners.

Versatility: These tractors are adaptable to various aircraft types and configurations, making them a crucial component of ground support operations.

Towing Mechanism: Tow tractors are equipped with a tow bar or towing attachment that connects to the aircraft's nose landing gear or designated towing points.

Specification



AIRCRAFT TOW TRACTOR
Diesel Engine Max. power 73.5Kw/2600rpm

Overall dimension

(length x width x height)

5592×2158×1638mm
Wheel Base 2050 mm
Wheel Tread 1702 mm
Overall weight 7550KGs
Max. Towing Capacity High gear 16kN
Low gear 54kN

Max. vehicle speed

(full load without towing)

High gear 49km/h
Low gear 15 km/h
Min. Turning Radius  4.75m

Traction Coupling

Ground Clearance

Front traction coupling 387mm
Rear traction coupling 519mm
Driving type Full four wheel driving, Differential Lock with shaft
Steering Type Front wheel steering
Product Picture

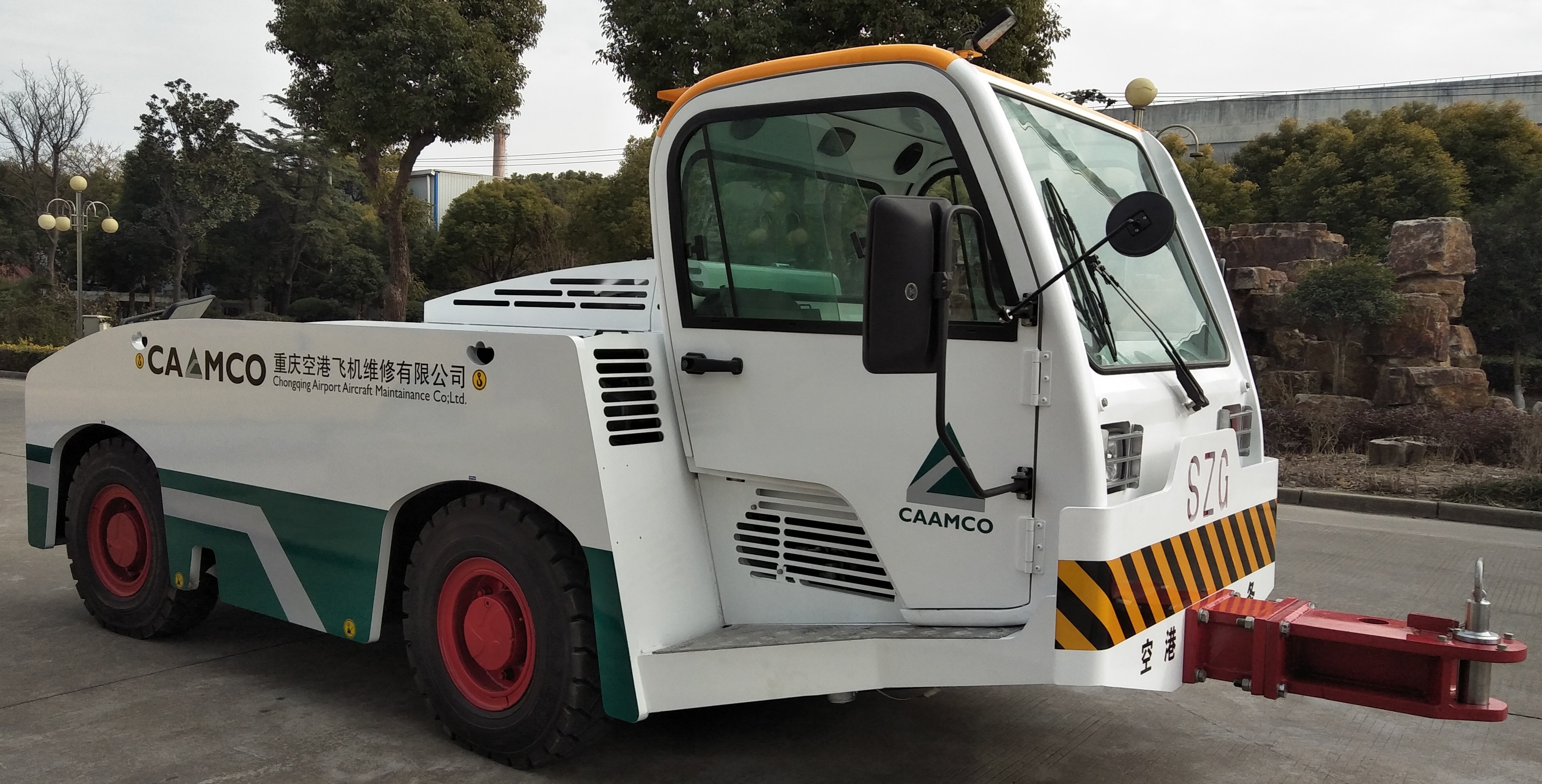

Aircraft-Tractor-15T-1

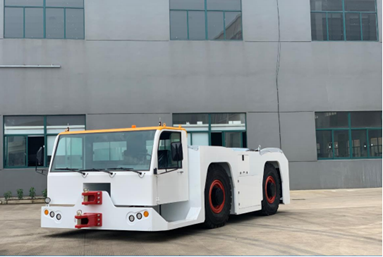

7cca93a466dfa58fce3e2a74ba00f70
