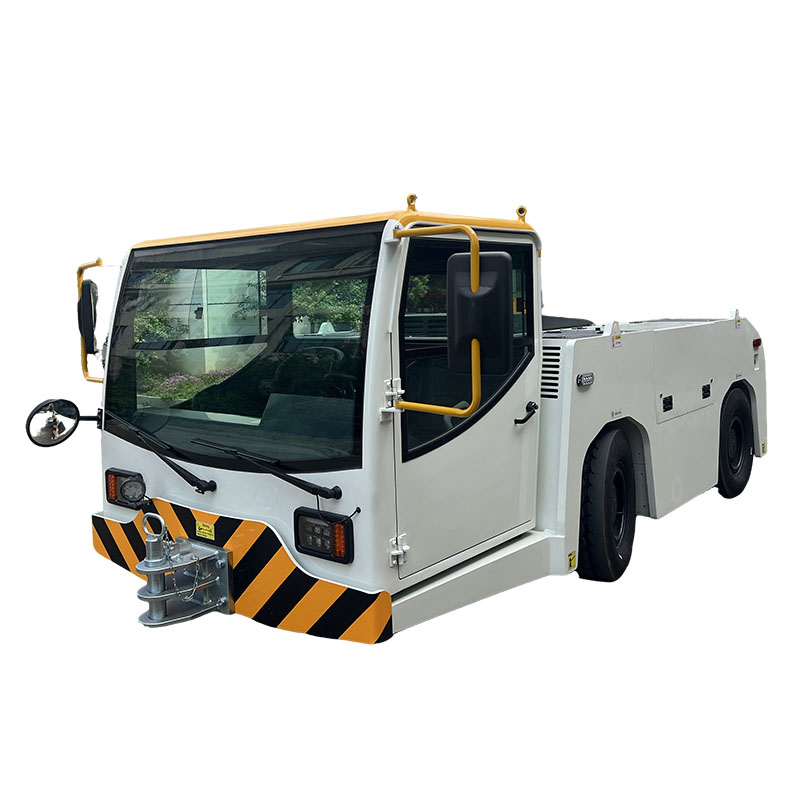

Electric Aircraft Battery Powered Airplane Tow Tractor

The Conventional aircraft tow tractor, as one model of our series conventional aircraft tow tractors that can be used for pushback on small/medium commercial aircrafts. Features a compact, low profile design, power-shift transmission drive and spacious cabin. It can be used for gate push back as well as maintenance towing.
Availability:
Quantity:
  • CMG7160

  • CheersMetal

Product Description

Brief description of CMG7160 aircraft tractor: CMG7160 aircraft tractor is a ground support vehicle with four-wheel drive and front and rear wheels can be steered. Maximum traction: ≥ 120KN, maximum travel speed: ≥ 25km /h, permitted towing mass: ≥150,000kg, mainly used for towing small and medium-sized aircraft.

Specification




Self-weight ≤15960kg
Maximum traction force  ≥120KN
Permitted towing mass  ≥150,000kg
Maximum travel speed  forward 25 Km/h; backward 18.7 Km/h
Minimum ground clearance  ≈220mm
Minimum turning diameter  11200mm
Dimensions  length*width*height≤5328mm*2110mm*1960mm
Wheelbase  2200mm
Tire  8.25R15 front and rear single tire (reinforced); air pressure - 1000kPa
Wheel base  front/rear - 1790/1790mm
Driving angle  approach angle - 15°; departure angle - 15°
Maximum grade  25 %
Braking distance  ≤3.4m

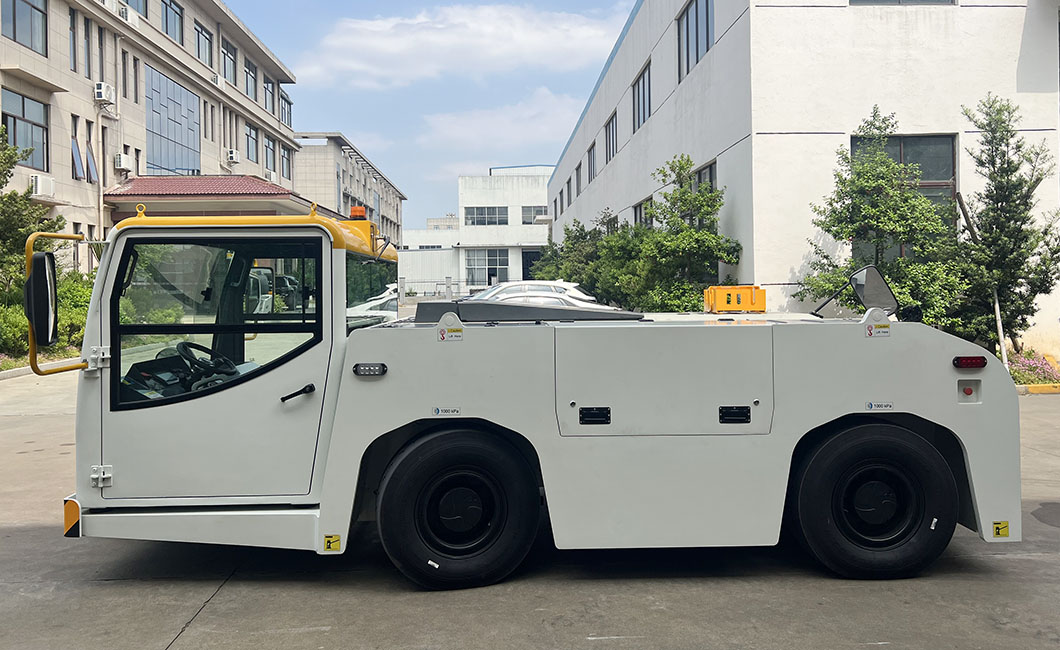

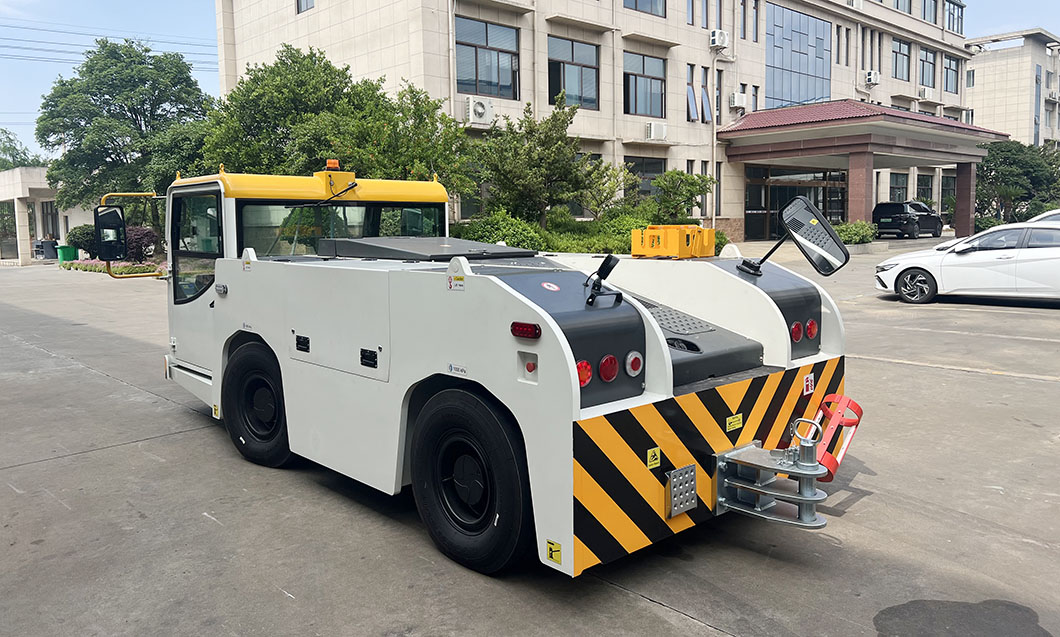

Product Picture

CMG7160产品-1CMG7160产品-2
