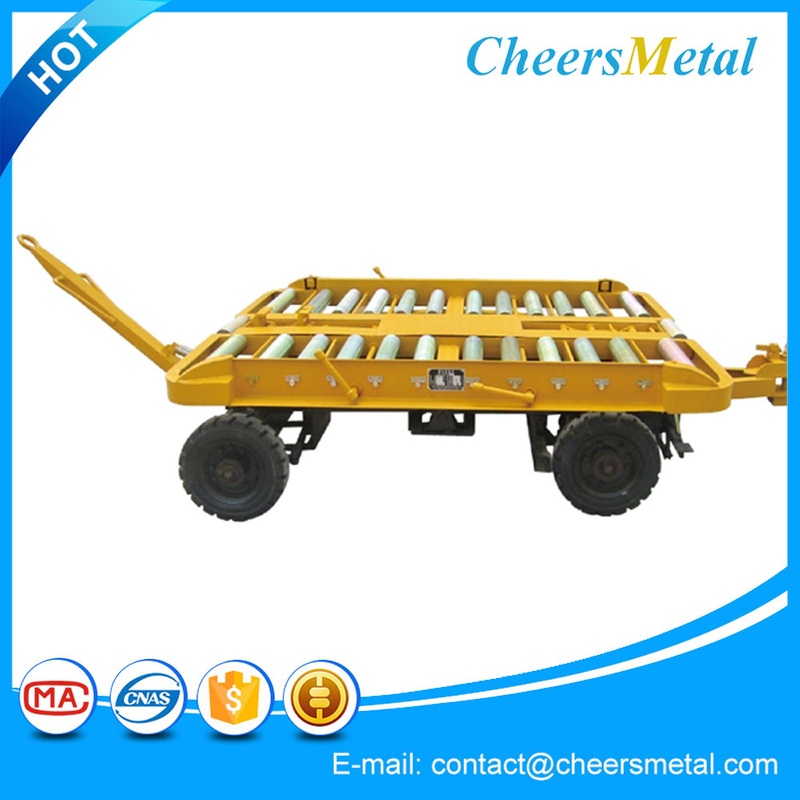

An airport pallet dolly, also known simply as a pallet dolly or aircraft dolly, is a specialized ground support equipment used at airports to transport and maneuver aircraft pallets, containers, and other cargo units. These dollies are essential for efficiently moving cargo between storage areas, aircraft, and cargo handling facilities.
Key features of an airport pallet dolly include:
Cargo Transport: The dolly is designed to transport various types of cargo units, such as pallets, containers, ULDs (Unit Load Devices), and other large cargo items.
Compatibility: Dollies are designed to be compatible with different types of aircraft and cargo units, ensuring versatility in handling various loads.
Loading and Unloading: The dolly's platform or bed is positioned at a suitable height for easy loading and unloading of cargo onto aircraft or storage areas.
Main function
For transportation of LD1/LD2/LD3 with payload of 1.6 Ton.
SPECIFICATION OF PALLET DOLLY |
| Load | Side/rear | Max Payload(kg) | 1600/7000/18000/27000 |
| Tare(Kg) | 1103/1450/1352 | Wheel base(mm) | 1600/2060 |
| Overall dim(mm) | 4109(L)*3400(W)*1563(H) | Platform Height(mm) | 508-518 |
| Towbar height dropped position(mm) | 606-625 | Length Between Tyres(mm) | 1960-2484 |
| Rear wheels(mm) | 400*100 | Front Wheels(mm) | 400*100 |
| Roller dia(mm) | 76 | Max speed(Km/h) | 25 |
| Min turn radius(mm) | <=4500 |
|
|
Feature
1.Tyre:solid cushion for long life;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.2 Stoppes each at both ends for sides guides;
4.Tow hitch at rear end for multi-dolly toweling linkage;
5.Galvanized rollers chequered plate walkways;
6.Tow bar for multi-dolly linkage & brake functions
7.fork tynes at both sides support orklift handing
8.Powered brush or blast & user's optional finish paints
9.Unit ID number pad at request
