Product Description
The CMQ5030QXZ mobile aircraft windshield washing vehicle is a compact mobile vehicle for aircraft windshield cleaning.
Applicable aircraft models include: A320, A330, A340, A350, B737, B747, B757, B767, B777, etc.
AHM910 – Basic Requirements for Aircraft Stand Support Equipment
AHM913 – Basic Safety Requirements for Aircraft Stand Support Equipment
AHM915 – Standard Controls
AHM916 – Basic Requirements for Towing Surfaces of Inclined Operation Equipment
Q/WXQ 021-2026 – Enterprise Standard for WXQ Series Aircraft Washing Vehicles
Specification
Vehicle curb weight | 2700 kg |
Maximum towing speed | 5 km/h |
Minimum ground clearance | 110 mm |
Platform lifting height | 8000 mm |
Permitted platform load | 200 kg |
Motor power | 1.1 kW |
Washing tank capacity | 35 L |
Rinsing tank capacity | 35 L |
Washing pressure | 20–100 bar (adjustable) |
Continuous operating time | 4 h |
Overall dimensions | 2200 × 1800 × 2000 mm |

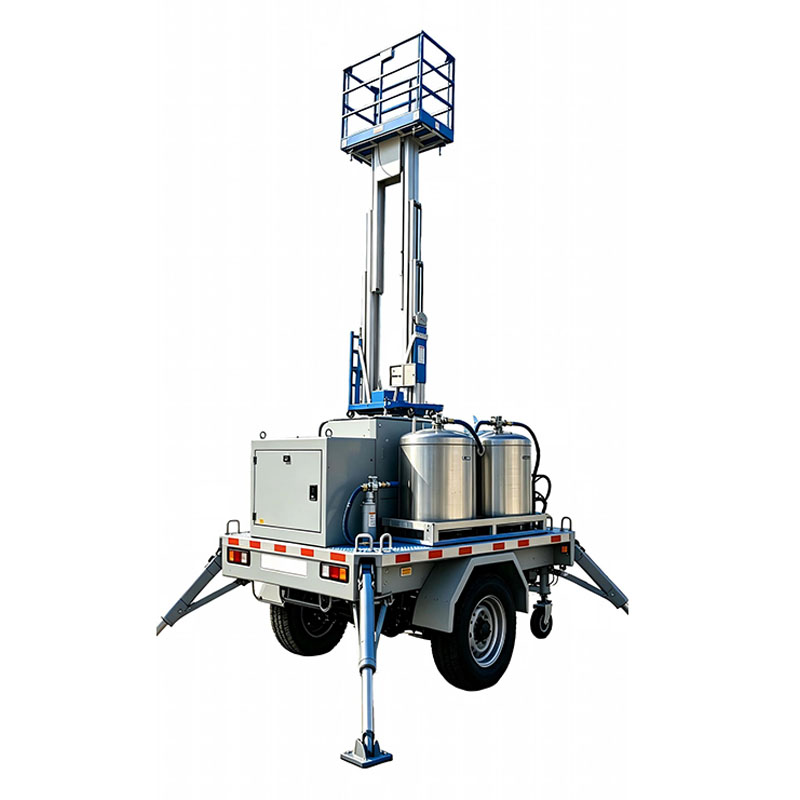

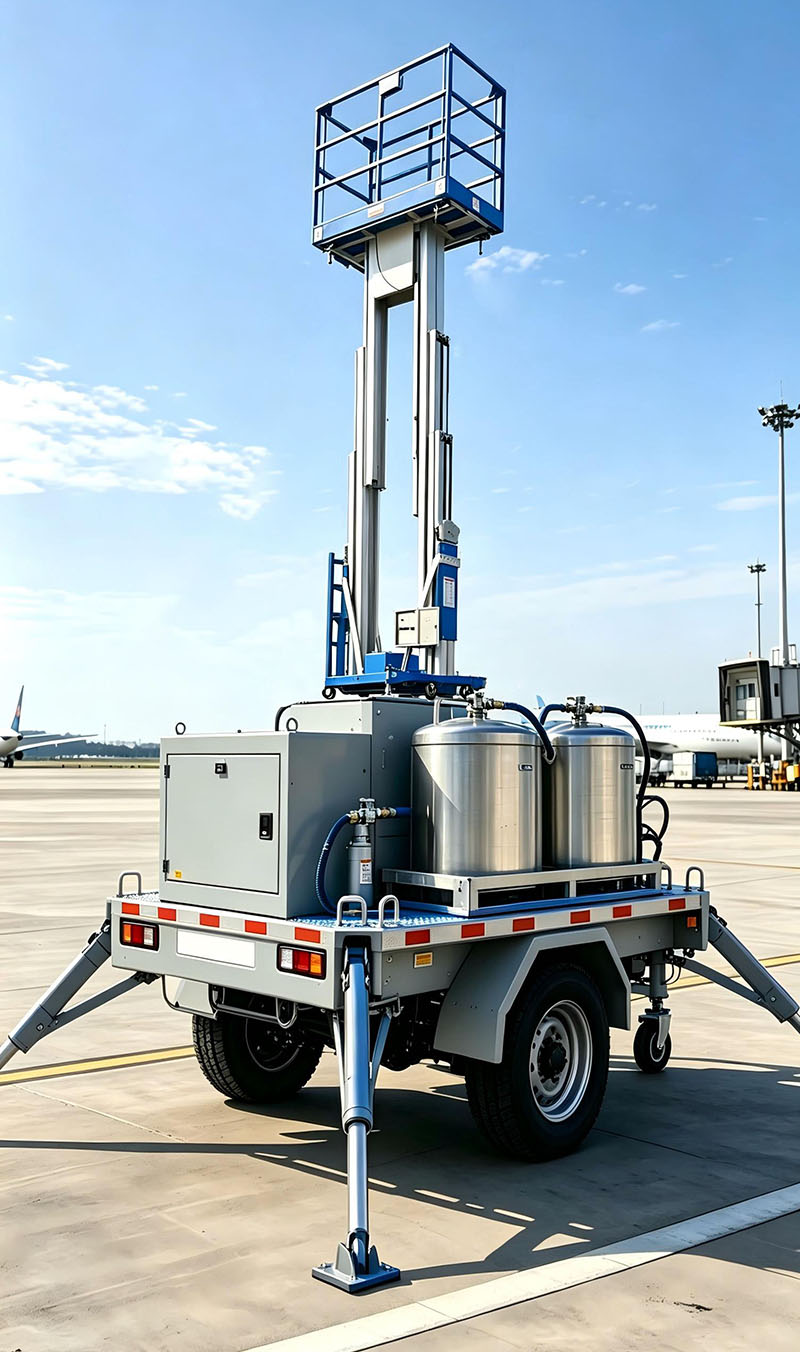

Product Picture
