Product Description
At present, X-ray detection has become the main means of detecting suspicious objects in security inspection and explosive disposal. However, the general X-ray detection needs to be placed at both ends of the detected object light source and detector, the layout is complex, can only detect objects on the ground, can not detect objects against the wall or hanging position. At the same time, the X-ray transmission detection of low-density organic matter (explosives, drugs) is not sensitive. Therefore, the back scattering technique of one-sided imaging becomes an important means to solve the above problems. I rely on strong r & D strength of X-ray products, self-developed a hand-held back scatter detector, with a related invention patents. One-sided detection, image quality reaches the international advanced level. Can effectively check some common x-ray machine difficult to check the area, such as wall objects, furniture, walls, car doors and tires.
Specification
| Dimensions | 305*233*196mm |
| Weight | 5.85kg |
| Penetration | Can detect organic glass or soap behind a 2mm steel plate |
| Detection Area | At a distance of 100mm from the object, the detection width is at least 175mm |
| Detection Speed | 300mm/second, with instant image capture |
| Power Supply | Lithium battery with a battery life of over 2 hours |
| Utilizes advanced backscatter imaging technology |
| Highly integrated and simple to operate, even by one person |
| Excellent image quality, easily distinguishing organic and inorganic materials |
| All devices fit into a single case |

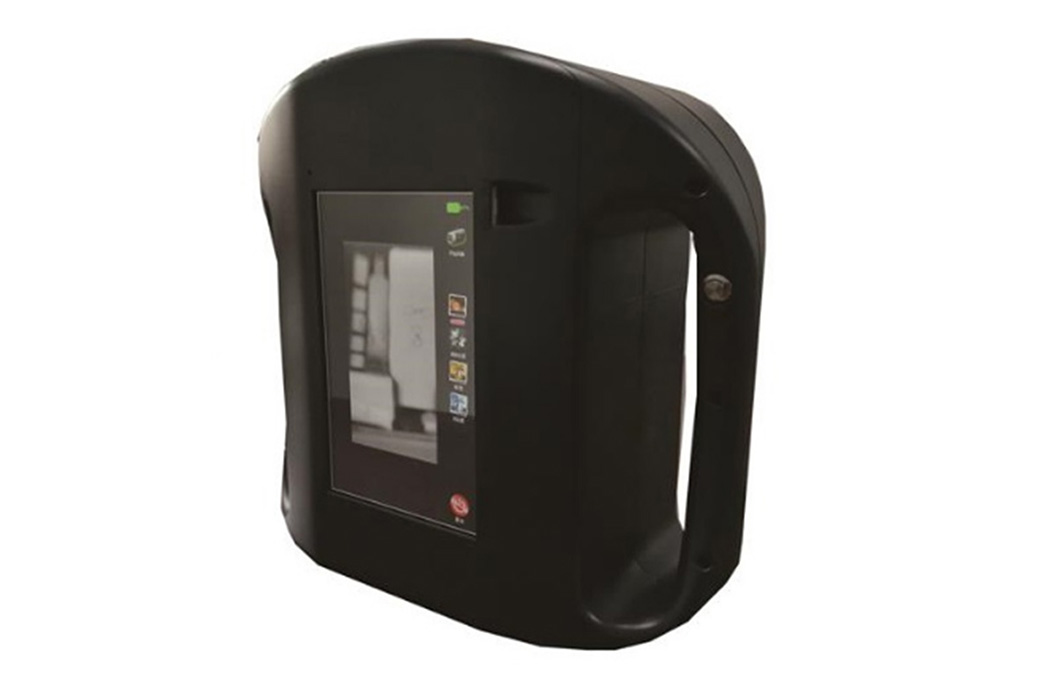

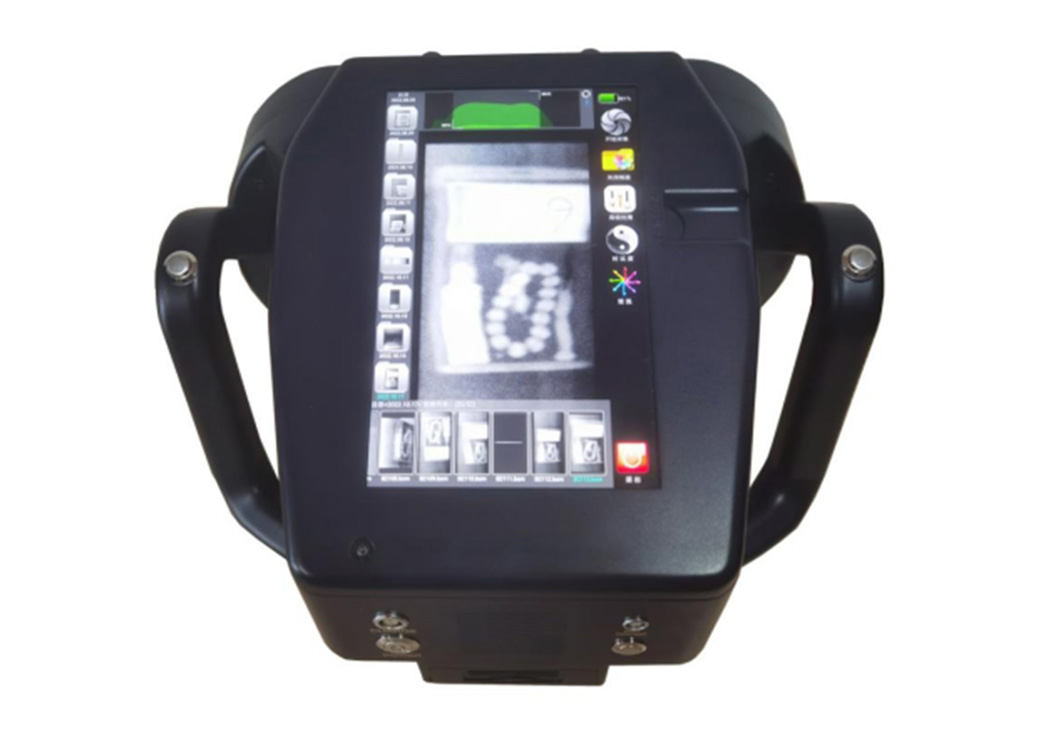

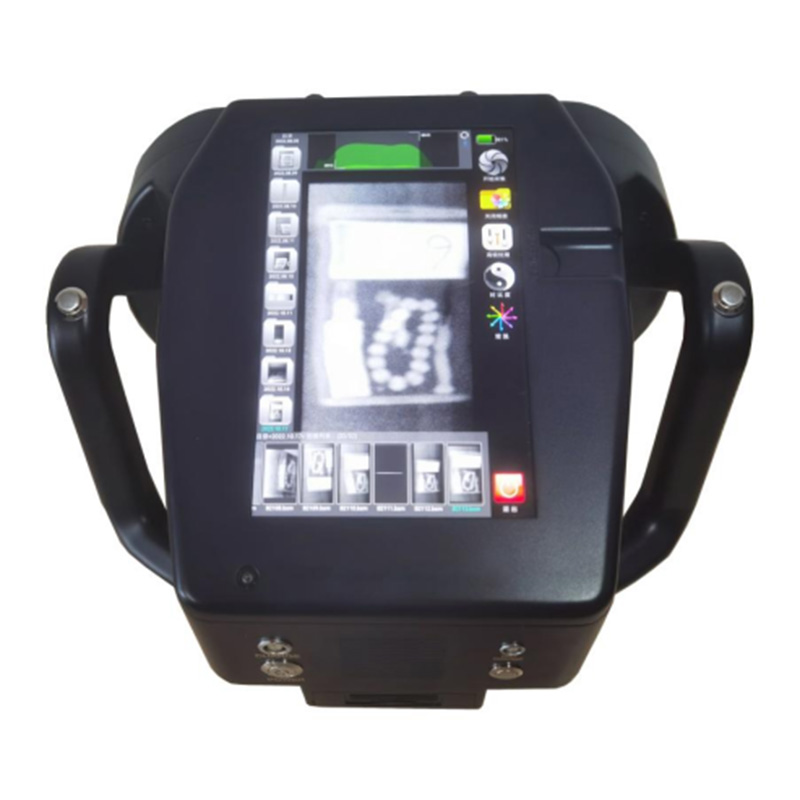

Product Picture
