Runway Self-propelled passenger stairs for large aircrafts

Availability:
Quantity:
Inquire Add to Basket

  • CM-AGE-KT

  • CHEERSMETAL

Introduction

Airport passenger stairs play an important role in ensuring efficient and comfortable boarding and disembarkation for passengers, especially in situations where aerobridges are not available or practical. They provide a flexible solution for aircraft parked on remote stands and contribute to the overall passenger experience at airports.

Key features of airport passenger stairs include:

Safety Measures: Passenger stairs often include safety features such as brakes, stabilizers, and locking mechanisms to ensure stability during use.

Access Control: Some models may include security features such as access gates or barriers to control passenger flow and enhance security.

Weather Protection: Certain passenger stairs are equipped with covers or shelters to protect passengers from adverse weather conditions.

Maintenance: Regular maintenance is crucial to ensure the stairs are in proper working condition and safe for passenger use.

Product Description
Name
Runway Self-propelled stairs，large aircrafts passenger stairs
Chassis type
ISUZU
Engine type
ISUZU
Overall dimension (length×width×height) (mm)
7990×2400×3691
Wheelbase (mm)
3815
Curb weight (kg)
8400
Min height of Ground clearance (mm)
2400
Max height of Ground clearance (mm)
5800
Size of platform (length×width) (mm)
3350*2200
Minimal curve radius (m)
15
Allowed maximum running speed (km/h)
40
Maximum load-bearing (person)
70
Front Axle Load (kg)
2850
Rear Axle Load (kg)
4600

Which Aircraft Models are our passenger stair applied for?

The designed height is from 2400mm to 5800mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777 & etc.
Detailed Images

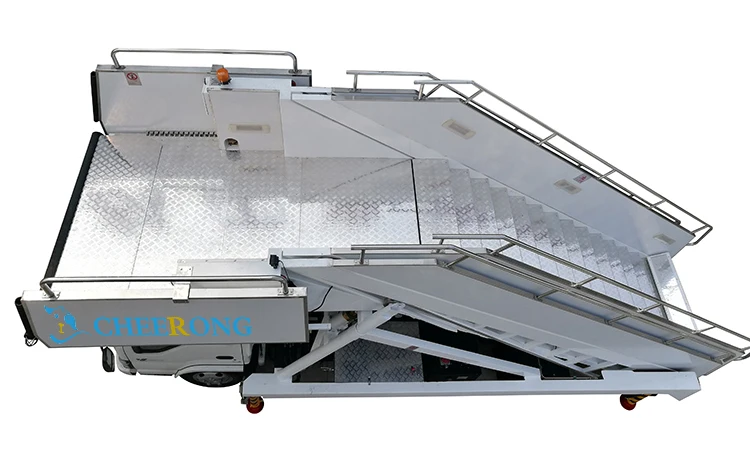

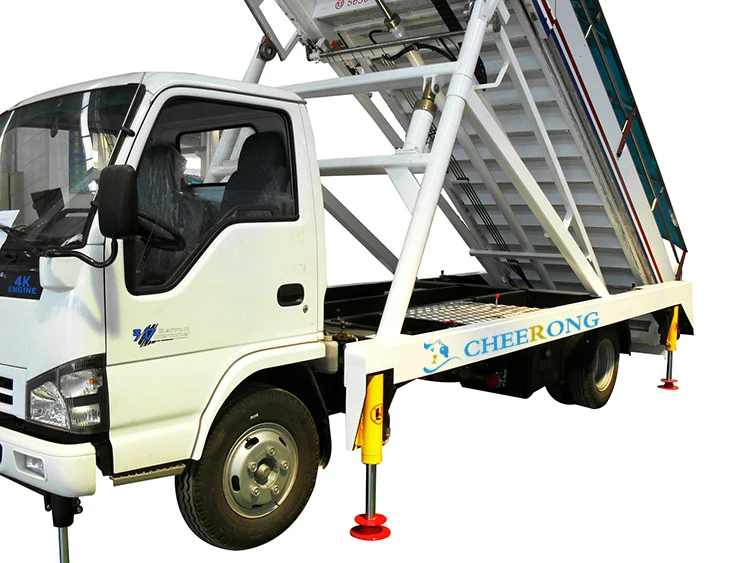

Detailed Image of  Self-propelled passenger stairs
Product packaging
Packing of Self-propelled passenger stairs
It's packed by frame container, the freight fee is a little higher compared with standard shipping container.
Company Introduction

Excellent qulity & fast delivery

We are specializing in the production of Self-propelled passenger stairs
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for Self-propelled passenger stairs?
A: It's depend on your quantity requirement & when you make order, generally, it's 3~4 months.

Q: Do you provide samples for Self-propelled passenger stairs? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record.
The standard warranty is one year.

Q: What is your terms of payment for Self-propelled passenger stairs?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: Do you need Airport Aircraft Passenger Stairs with Maximum load-bearing 60 peoples or 70 peoples at the same time?

Q2: How many do you need?

Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.

Wecome to contact us at any time.
