Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777

Size: L4500*W700mm
Height: 300~700mm
Availability:
Quantity:
Inquire Add to Basket

  • TB-A3334-B757677

  • CHEERONG

Introduction
Aircraft towing bars play a vital role in the movement of aircraft on the ground, supporting ground operations, maintenance activities, and overall airport efficiency. By providing a controlled and efficient means of moving aircraft, these towing bars contribute to the safety and effectiveness of aircraft handling processes.
Product Description
Name
Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777
Adjustable height
300~700mm
Total length
4500m
Cylinder Stroke
200mm
Total width
700mm
Diameter of wheel
350mm
Hydraulic medium
HL10

Which Aircraft models are our Aircraft Towing Bar applied for?

Airbus series(A330, A340, A350) & Boeing series (B757, B767, B777).
Detailed Images

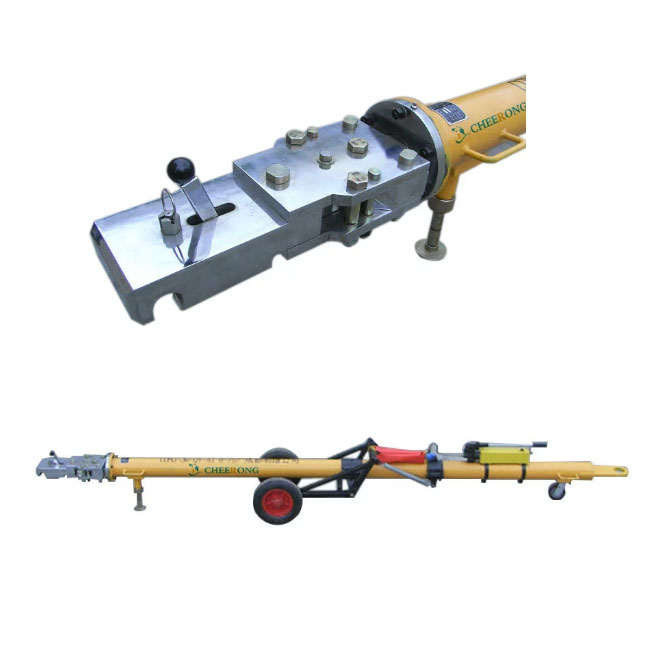

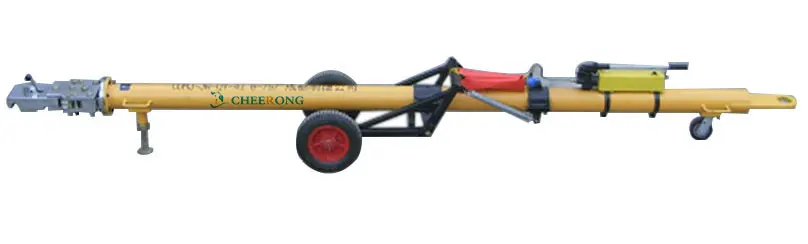

Detailed Image of Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777

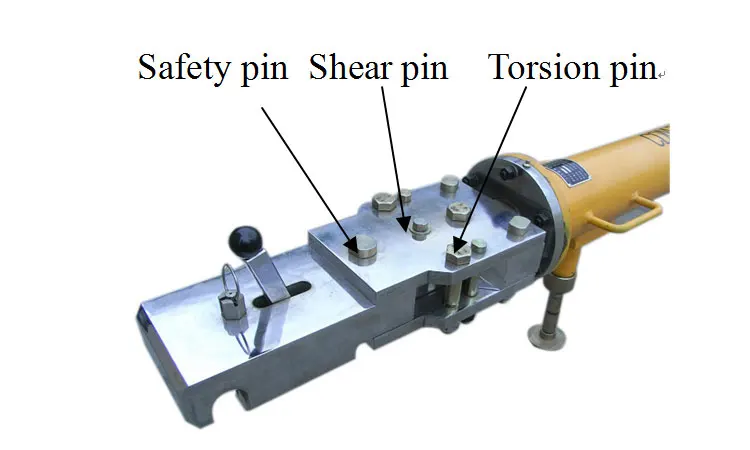

Safety Mechanisms
Safety Mechanisms of Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777

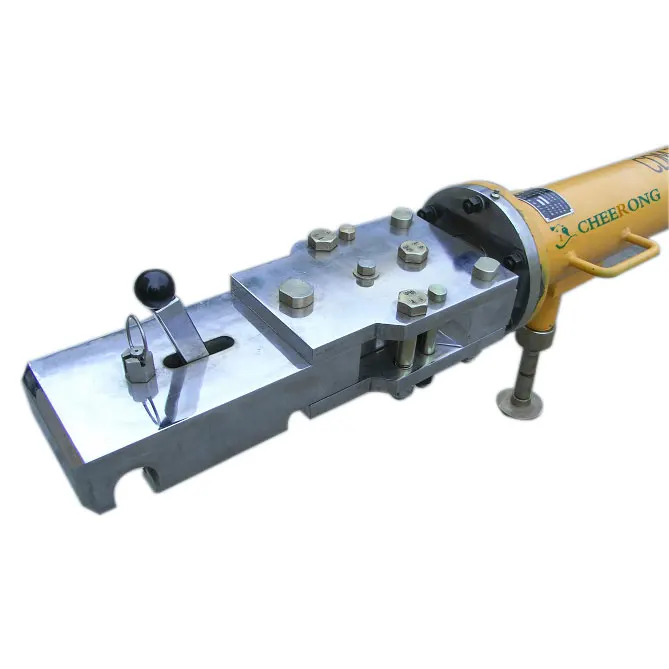

The traction head part:
this part is used for connecting landing gear and tow bar body,
Shear pin, torsion pin and safety pin are fixed on the traction head.

Shear pin:
To prevent excessive force of shaft pushing/towing rod and damaging the aircraft.

Torsion pin:
To prevents a larger angle when pushing / pulling the aircraft and causes excessive axial force to damage the aircraft.

Safety pin：
To prevent the impact of the shear pin and torsion pin after breaking, the damage will be too large and damage the aircraft.
Company Introduction

Excellent qulity & fast delivery

We are specializing in the production of Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time for Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777?
A: It's depend on your quantity requirement & when you make order, generally, it's 1~2 months.

Q: Do you provide samples? Warranty?
A: No, but you are welcome to visit our factory or I can show you some of our sales record.
The standard warranty is one year.

Q: What is your terms of payment for Universal Aircraft Towing Bar for A330,A340, A350, B757,B767,B777?
A: 30% T/T in advance ,balance before shippment.
Question For Fast Quotation
Q1: What's your aircraft model (our aircraft towing bar will be used for)?

Q2: How many do you need?

Q3: Need we arrange shipment for you? if yes, tell us name of discharge port.

Wecome to contact us at any time.
