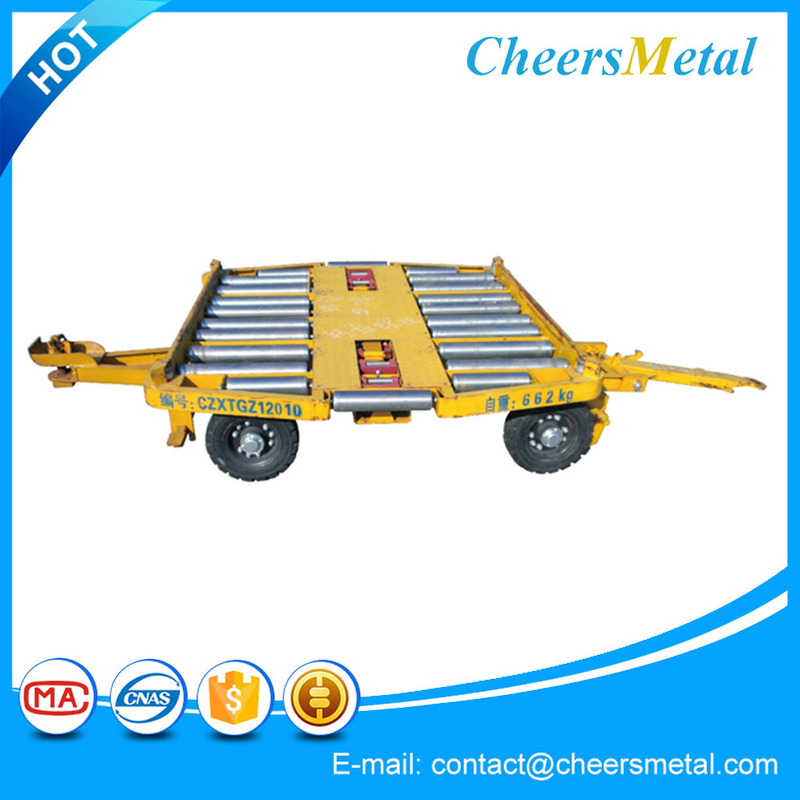

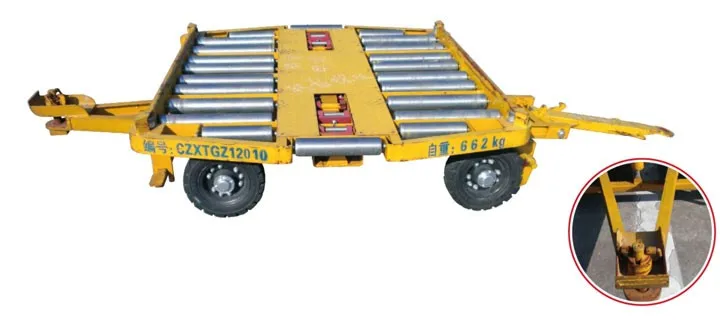

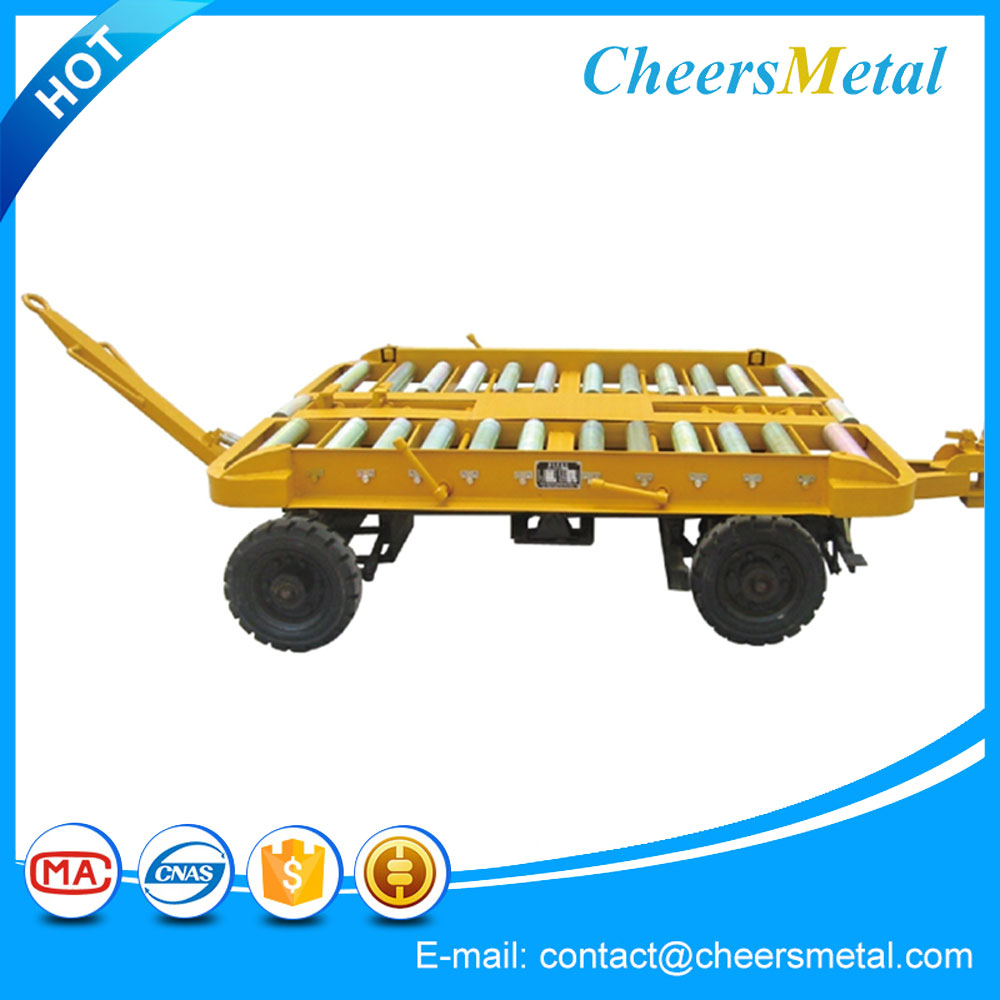

Airport pallet dollies are essential for the effective movement of cargo between storage facilities and aircraft, contributing to the overall efficiency of cargo operations at airports. By providing a reliable and versatile means of transporting cargo units, these dollies enhance the functionality of ground support operations and ensure the timely and organized loading and unloading of aircraft.
Main function
For transportation of LD1/LD2/LD3 with payload of 1.6 Ton.
SPECIFICATION OF PALLET DOLLY |
| Load | Side/rear | Max Payload(kg) | 1600/7000/18000/27000 |
| Tare(Kg) | 1103/1450/1352 | Wheel base(mm) | 1600/2060 |
| Overall dim(mm) | 4109(L)*3400(W)*1563(H) | Platform Height(mm) | 508-518 |
| Towbar height dropped position(mm) | 606-625 | Length Between Tyres(mm) | 1960-2484 |
| Rear wheels(mm) | 400*100 | Front Wheels(mm) | 400*100 |
| Roller dia(mm) | 76 | Max speed(Km/h) | 25 |
| Min turn radius(mm) | <=4500 |
|
|
Feature
1.Tyre:solid cushion for long life;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.2 Stoppes each at both ends for sides guides;
4.Tow hitch at rear end for multi-dolly toweling linkage;
5.Galvanized rollers chequered plate walkways;
6.Tow bar for multi-dolly linkage & brake functions
7.fork tynes at both sides support orklift handing
8.Powered brush or blast & user's optional finish paints
9.Unit ID number pad at request
