airplane garbage truck

Availability:
Quantity:
  • CM-AT-1

  • CHEERSMETAL

Introduction

This type of air refuse receiving vehicle is a special airport equipment for receiving cabin rubbish from the aircraft cabin door and transporting it to a waste disposal station. Adopt Jiangling or Isuzu chassis, advanced technology, reasonable structure, stable performance, flexibility, small turning radius, applicable to aircraft door height in the 2250~5250mm between the various types of aircraft use, including A300, A310, A318, A319, A320, A321, A330, A340, B737, B747, B757, B767, B777 and other aircraft.

Specification
AIRCRAFT TOW TRACTOR
Gross vehicle weight 5580kg
Overall dimensions (LxWxH) 7380*2270*3890 mm
Hopper Dimensions(LxWxH) 5100*2000*1800mm
Max. speed (Fully loaded) 80 km/h
Hopper Capacity 15 cubic meter
Payload Capacity 1000 kg
Fixed Platform Load 300 kg
Extendable Platform Load 200 kg
Service Range 2650~5810mm
Feed Opening 2340*1100mm
Platform Extension Range 0~500mm
Dumping Angle 33°
Tailgate Maximum Openning Angle 60°

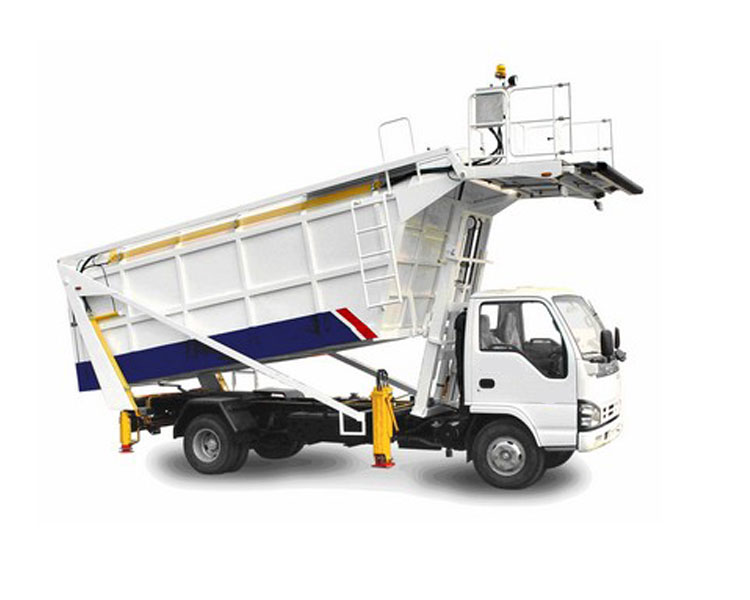

Product Picture

Aircraft-Garbage-Truck-1

About Us

 Our company covers an area of 40,000 square meters, with more than 20,000 square meters of production workshops and more than 4,000 square meters of office buildings. Currently, the company has employed about 70 workers, including 5 engineering technicians, and 2 professor-level senior engineers. Since its establishment, the company has developed for more than 20 years along with the development of China's civil aviation, and has formed the airport ground equipment, airport logistics equipment and air containers three series, covering a total of more than 50 varieties of products. All air containers have been available to TSO or PMA airworthiness certification by Civil Aviation Administration of China (CAAC) and part of the air containers have been adopted the TSO design approval of the United States Federal Aviation Administration (FAA) at home.
